Removal and Replacement Procedures
Compaq ProLiant DL360 Server Maintenance and Service Guide 2-29
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
7. Use a T-10 screwdriver to remove the screw and bracket enclosing the power cord
connector to the AC filter.

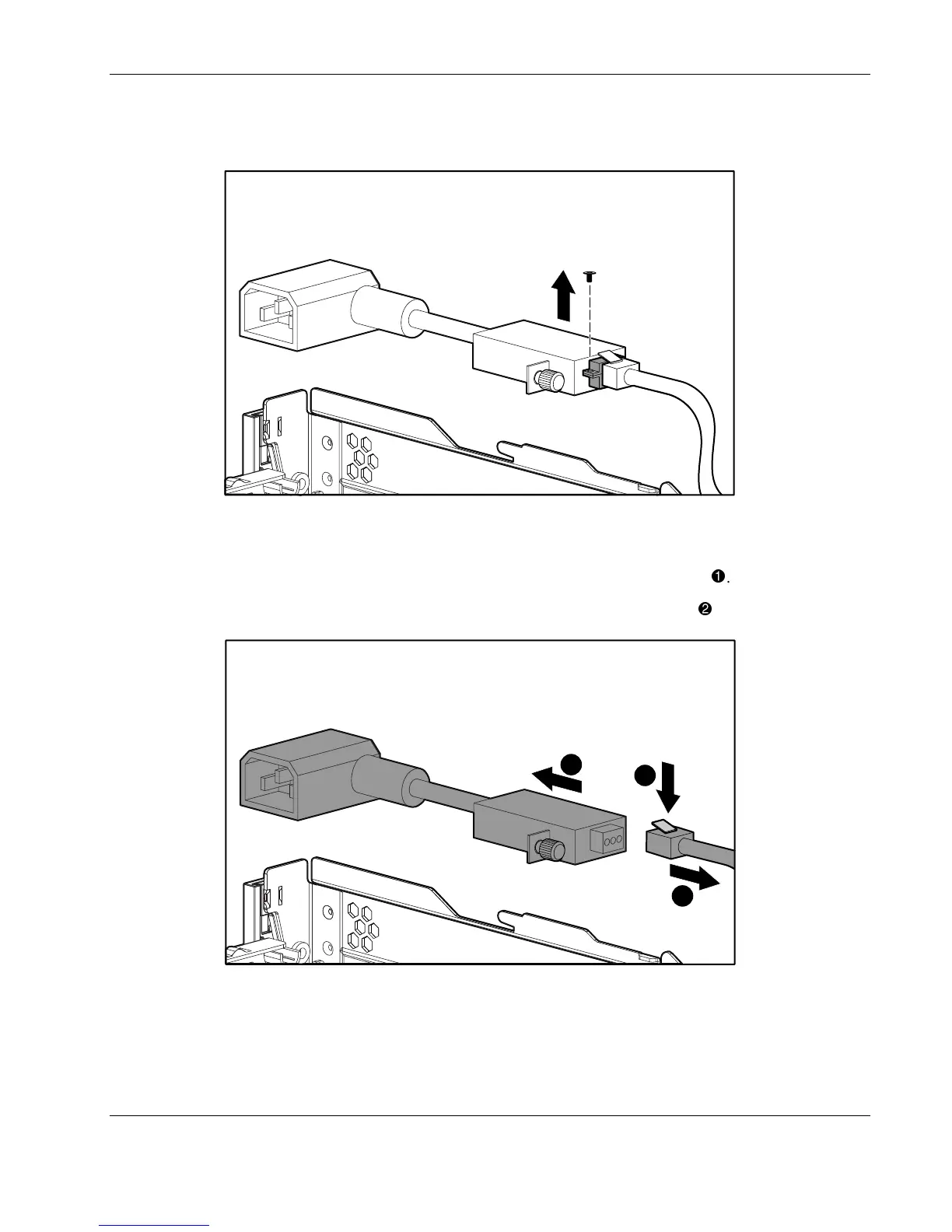

Figure 2-24: Removing the power cord connector bracket
8. Disconnect the AC power cord from the AC filter.
a. Push down on the internal power cord connector locking latch
.
b. Slide the internal power cord connector away from the filter
.
1
2
2
Figure 2-25: Disconnecting the power cord from the filter
Reverse steps 1 through 8 to replace the AC power cord and filter.
