Removal and Replacement Procedures
Compaq ProLiant DL360 Server Maintenance and Service Guide 2-31
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
Cable Protector
To remove the cable protector:
1. Complete the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the access panel. See “Server Access Panel” earlier in this chapter.
3. Remove the PCI riser board assembly. See “PCI Riser Board Assembly” earlier in this
chapter.
4. Remove the air baffle. See “Air Baffle” earlier in this chapter.
5. Remove the AC power cord and filter. See “AC Power Cord and Filter” earlier in this
chapter.
6. Remove the power supply. See “Power Supply” earlier in this chapter.
7. If installed, remove the optional internal array controller interface assembly. See
“Optional Internal Array Controller Interface Assembly” earlier in this chapter.
8. Slide the cable protector toward the rear of the server until the rear tabs are clear of the
retaining sleeve
.
9. Lift the front edge of the cable protector and remove it from the chassis
.
1
2

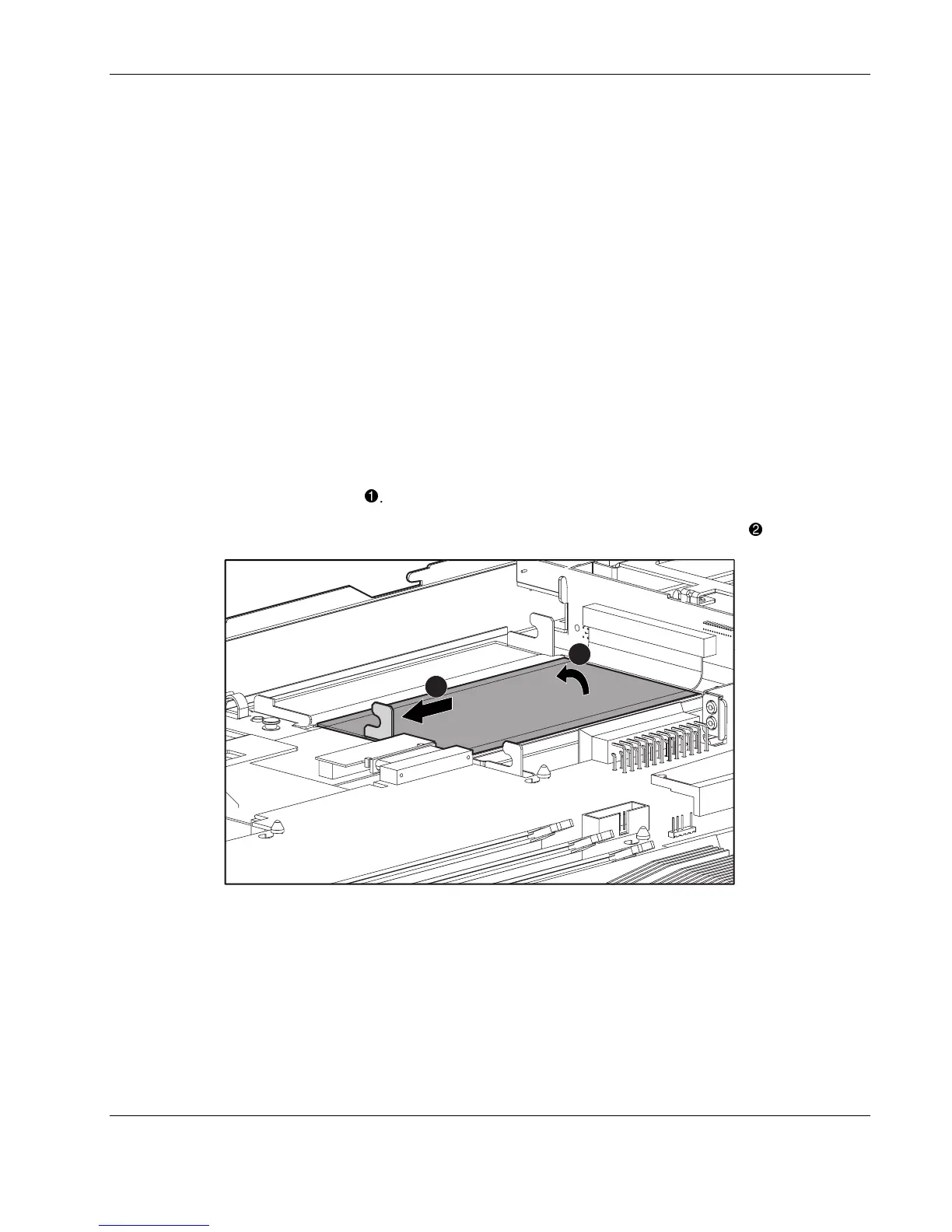

Figure 2-27: Removing the cable protector
Reverse steps 1 through 9 to replace the cable protector.
