Hardware options installation 49
7.

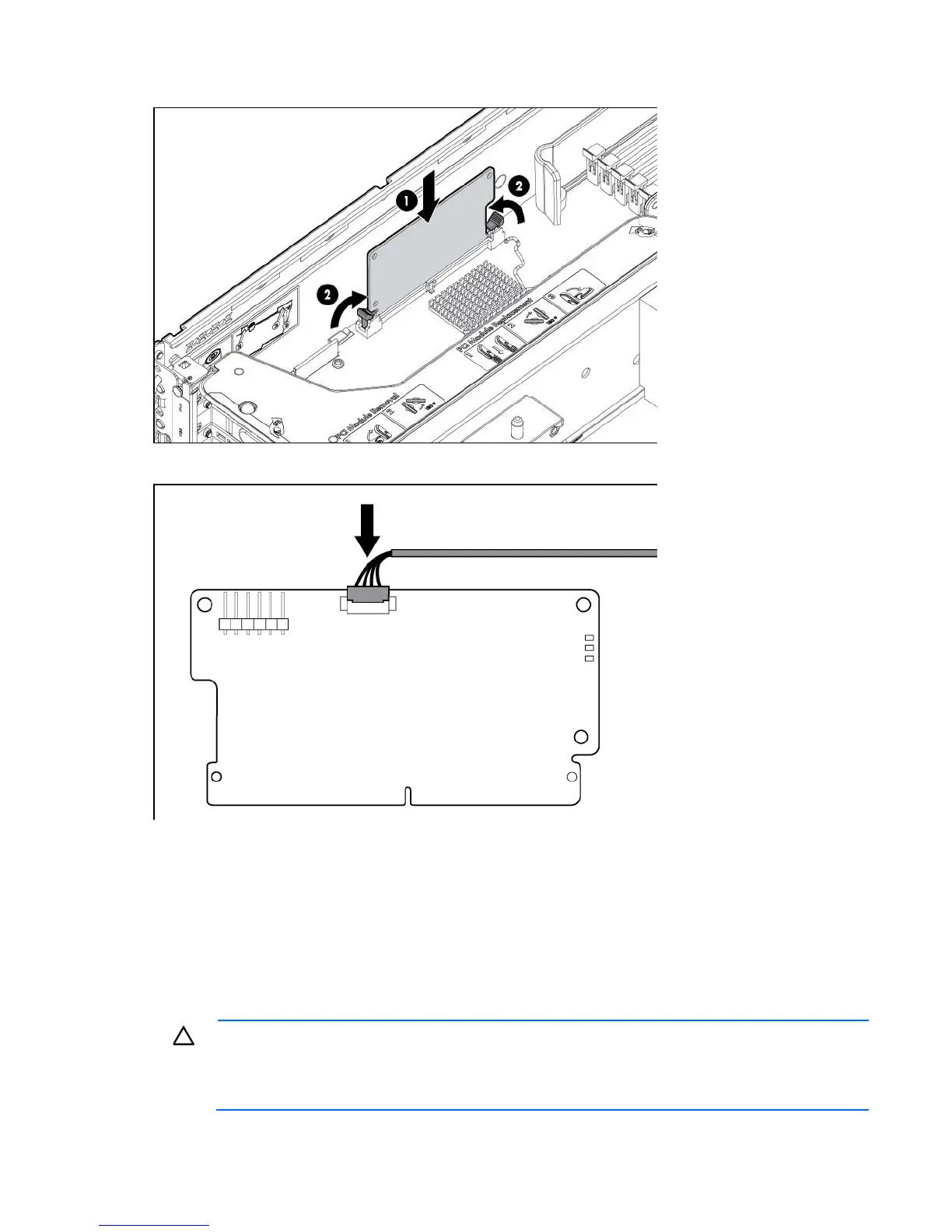

Install the cache module.
8. Connect the capacitor pack cable to the connector on the top of the cache module.
9. Install the access panel (on page 20).
10. Install the server into the rack ("Installing the server into the rack" on page 30).
11. Connect each power cord to the server.
12. Connect each power cord to the power source.
13. Power up the server (on page 18).
Installing the flash-backed write cache capacitor pack
CAUTION: The cache module connector does not use the industry-standard DDR3 mini-DIMMs.
Do not use the controller with cache modules designed for other controller models, because the
controller can malfunction and you can lose data. Also, do not transfer this cache module to an
unsupported controller model, because you can lose data.
