Removal and replacement procedures 28
2.

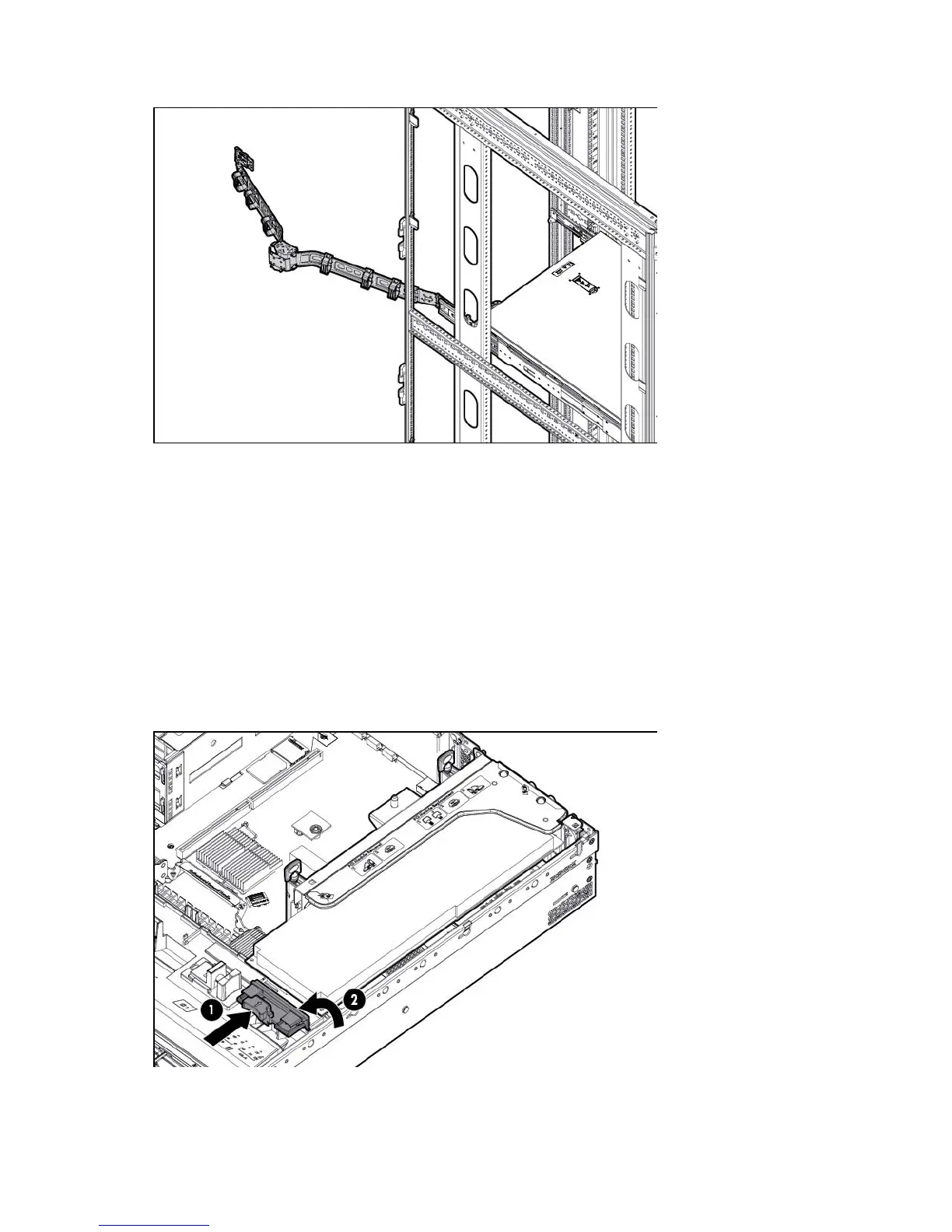

Open the cable management arm. The cable management arm can be right-mounted or left-mounted.
Release the full-length expansion board retainer
To remove the component:
1. Power down the server (on page 25).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 25).
4. Remove the access panel ("Access panel" on page 29).
5. Release the full-length expansion board retainer.
To replace the component, reverse the removal procedure.
