HP ProLiant DL560 Gen8 Service Manual

Component identification 74
Slot PCIe 3-slot riser cage* PCIe 2-slot x16 riser cage
5 - HL/FH
PCIe2 or PCIe3** x8 (8,4,2,1) PCIe2 or PCIe3** x16 (16,8,4,2,1)
6 - HL/FH
PCIe2 or PCIe3** x8 (8,4,2,1) —
*Depending on the server model, the server might ship with one or two riser cages installed.
**These slots can run 8 GT/s signaling rate in either PCIe2 or PCIe3 mode, depending on the capability of the installed
processor.
†PCIe slot 3 is connected to the southbridge and runs at the Gen2 signaling rate.
Notes:
"Primary" denotes the riser cage is installed in the primary riser connector.
"Secondary" denotes the riser cage is installed in the secondary riser connector.
Installing the riser cages listed in the table above in either the primary or secondary riser connectors determines the form
factor of the PCIe boards supported by those riser cages.
FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
The PCIe 2-slot x16 riser cage supports a maximum power of 150 W with an HP power cable. This cable must be used
for PCIe board wattages greater than 75 W.

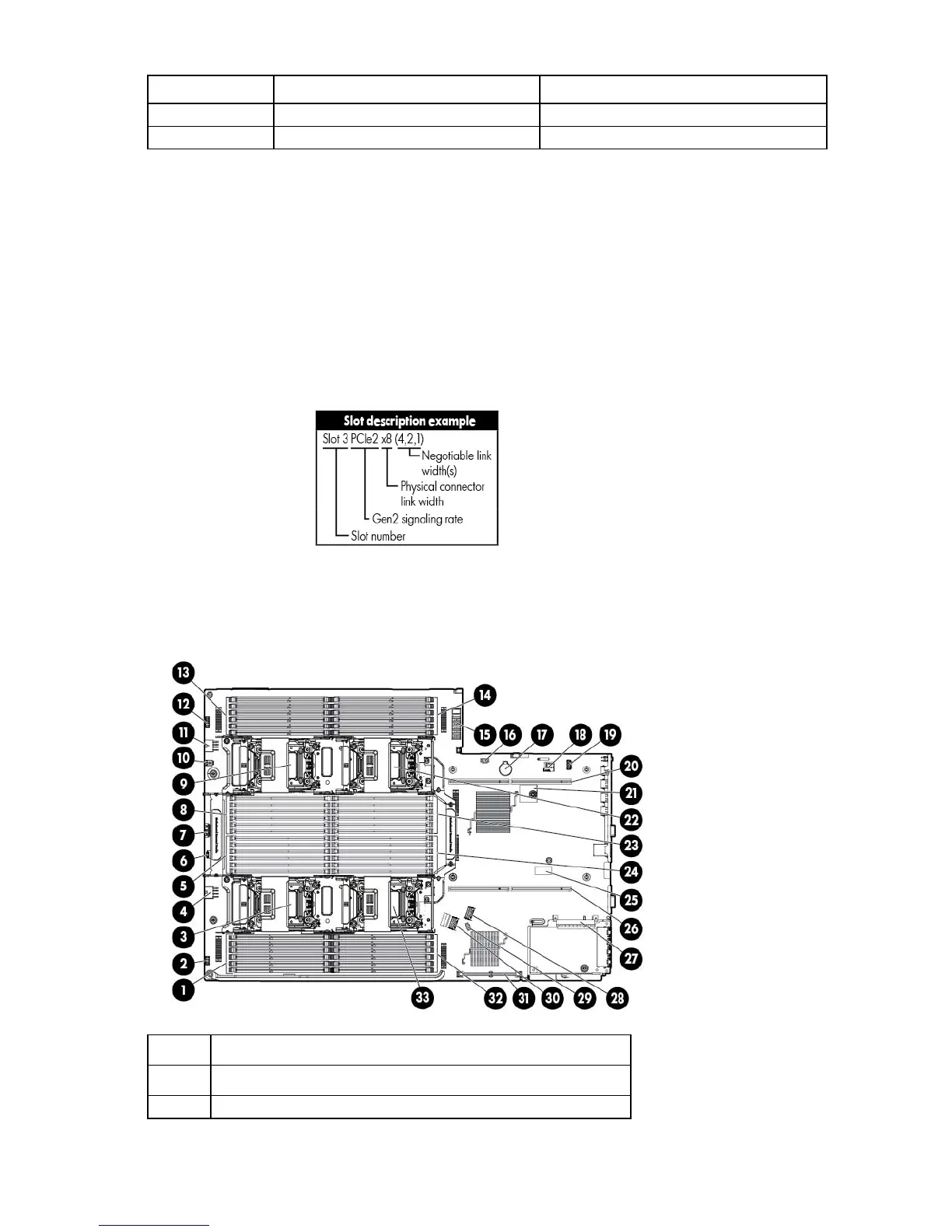

System board components
Item Description
1
Processor 3 DIMM slots (7-12)
2
Front power switch

HP ProLiant DL560 Gen8 Specifications

General

Processor	Intel Xeon E5-4600 v2 series
Form Factor	2U Rack
Processor Sockets	4
Memory Slots	48 DIMM slots
Memory	Up to 1.5TB DDR3
Storage	SFF SAS/SATA/SSD drives
Power Supply	1200W
RAID Support	HP Smart Array P420i/1GB FBWC
Network Controller	HP 1Gb 331FLR Ethernet Adapter 4-port per controller
Drive Bays	SFF
RAID	Smart Array P430i, P830i, P440ar, P840ar
Power Supply Options	1200W
Expansion Slots	PCIe 3.0 slots
Management	HP iLO 4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
