HP ProLiant ML110 G7 User Manual

Component identification 10

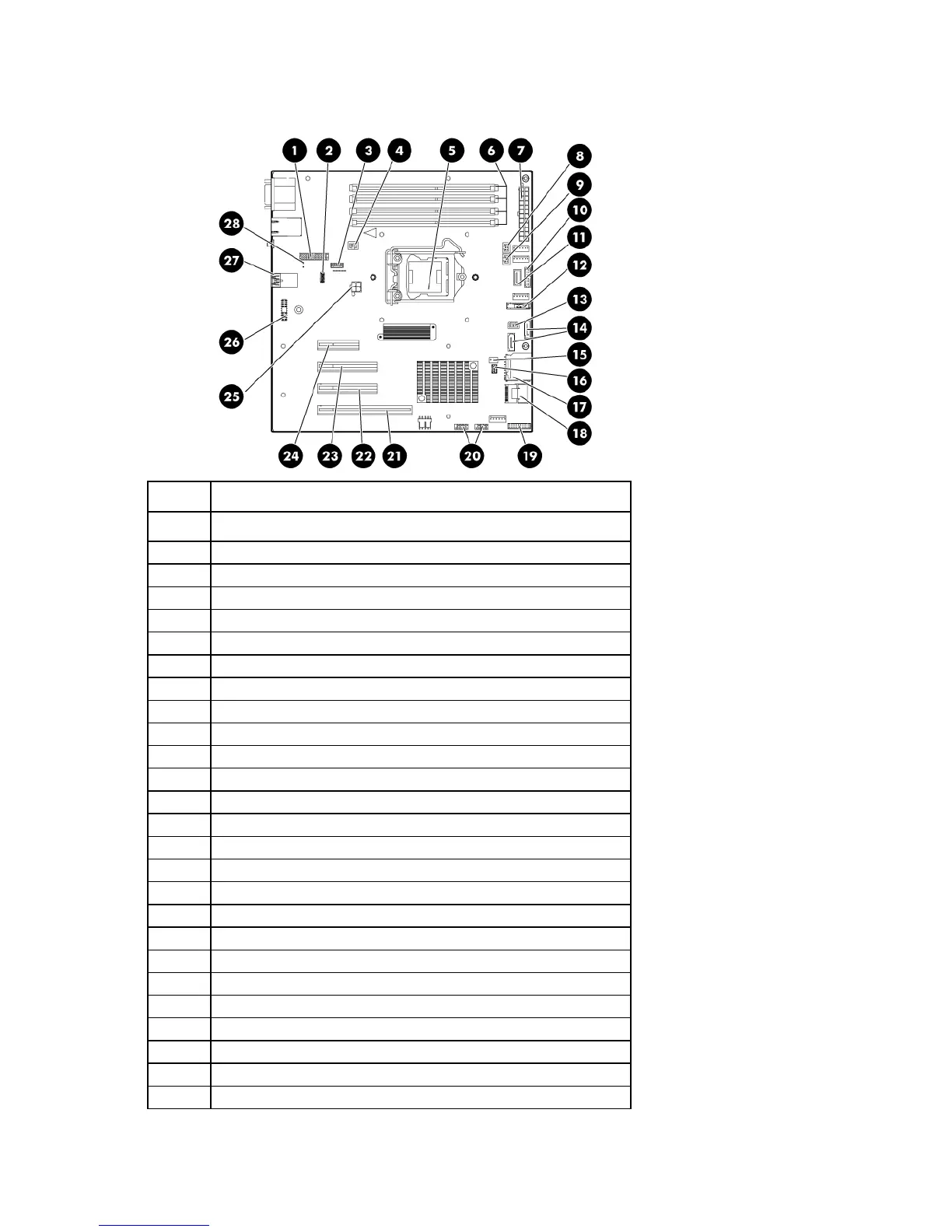

System board components
Item Description
1
Dedicated iLO management module connector
2
System maintenance switch
3
RPS connector (1x5 pin)
4
Front system fan connector (2x3 pin)
5
Processor socket
6
DIMM slots (4)
7
24-pin power supply connector
8
Processor-heatsink fan assembly connector (2x3 pin)
9
Rear system fan connector (2x3 pin)
10
RPS connector (2x8 pin)
11
Internal USB connector
12
System battery
13
I
2
C cable connector
14
SATA connectors (2)
15
SMB bus connector
16
Temperature sensor connector
17
SD card connector
18
Mini-SAS connector
19
Front I/O connector
20
Front USB connectors (2)
21
Slot 1 PCIe2x16 (16, 8, 4, 1)
22
Slot 2 PCIe2x8 (4, 1)
23
Slot 3 PCIe2x8 (4, 1)
24
Slot 1 PCIe2x4 (1)
25
4-pin power supply connector
26
TPM connector

HP ProLiant ML110 G7 Specifications

General

Product Type	Server
Form Factor	Tower
Processor Sockets	1
Chipset	Intel C202
Memory Type	DDR3 UDIMM
Maximum Memory	16 GB
Memory Slots	4
Processor	Intel Xeon E3-1200 series
Storage	SAS or SATA
Drive Bays	4 LFF or 8 SFF
Hard Drives	Optional
Optical Drive	Optional
Network Controller	HP NC112i Gigabit Ethernet Adapter (1 port)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Storage Controller	HP Dynamic Smart Array B120i
