Component identification 11
Item Description
27
Rear USB connectors (4)
28
NMI header

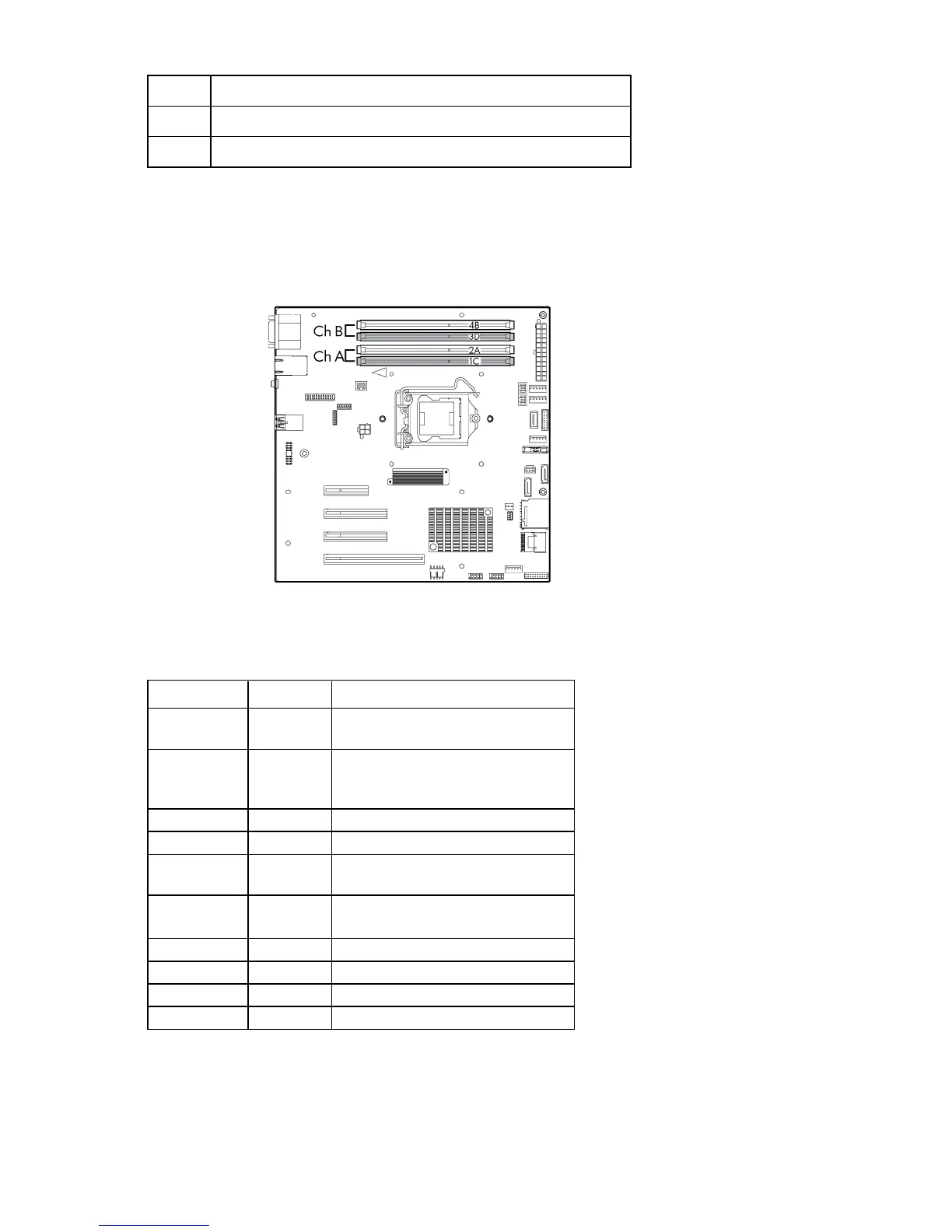

DIMM slot locations
DIMM slots are numbered sequentially (1 through 4) for the processor.
System maintenance switch
Position Default Function
1
Off Off = iLO security is enabled
On = iLO security is disabled
2
Off = System configuration can be
changed
On = System configuration is locked
3
— Reserved
4
— Reserved
5
Off Off = Power-on password is enabled
On = Power-on password is disabled
6
Off Off = No function
On = Clear NVRAM
7
— Reserved
8
— Reserved
9
— Reserved
10
— Reserved
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
