System Configuration

e. Gently pull out the FDD from the chassis.

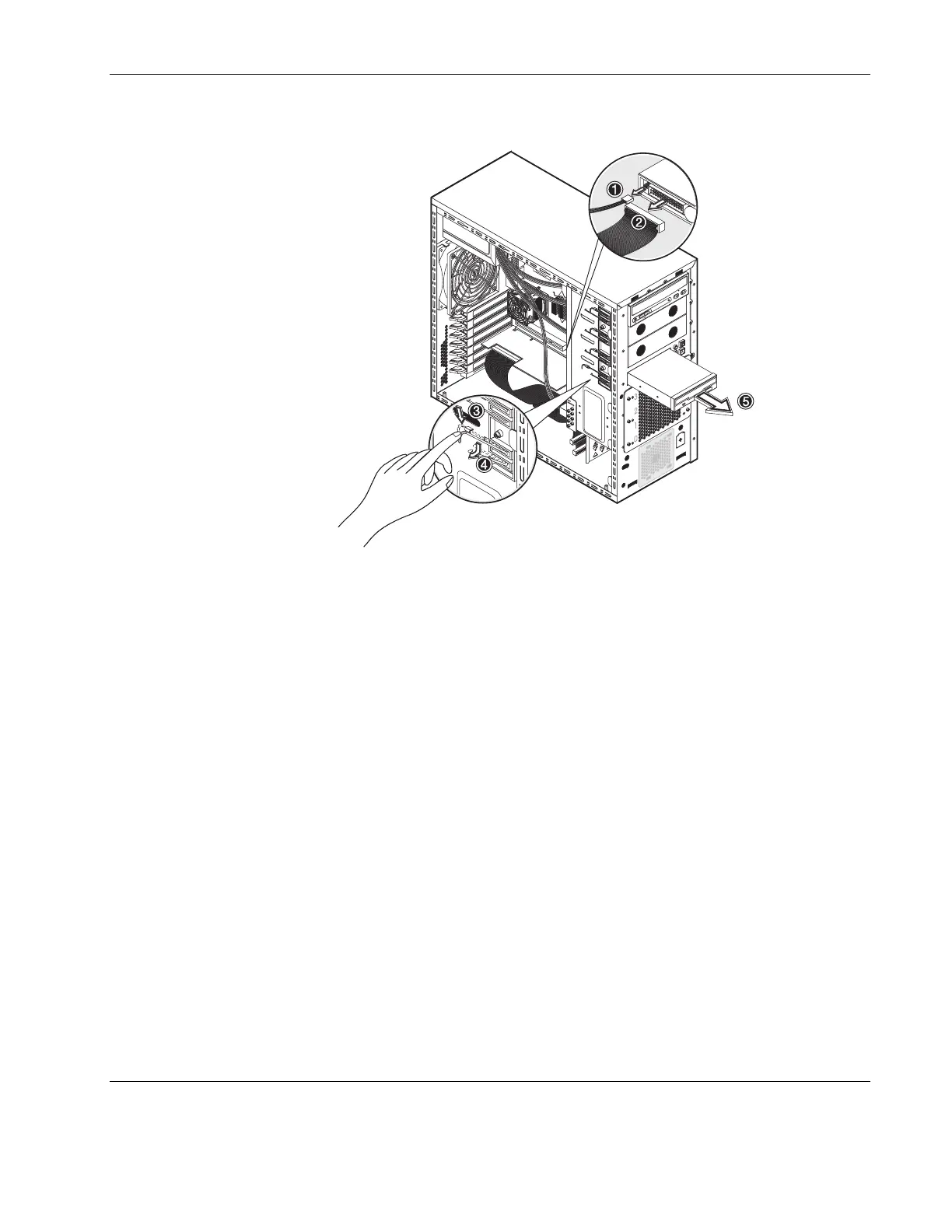

Figure 4-7: Removing the FDD

5. Place the removed FDD on a static-dissipating work surface or inside an anti-static bag.

6. Remove the new FDD from its shipping container.

7. Install the new FDD:

a. Guide the new FDD into the FDD bay, with the cable connectors facing the rear of

the chassis, then push the drive all the way into the chassis until the mounting holes

are aligned.

b. Press the FDD retaining lever downward.

c. Move the lever into its retaining hook to secure the new drive in place.

d. Connect the FDD power cable to its connector on the rear of the drive.

HP ProLiant ML110 Server Operations and Maintenance Guide 4-9
