HP ProLiant ML310e User Manual

Component identification 16

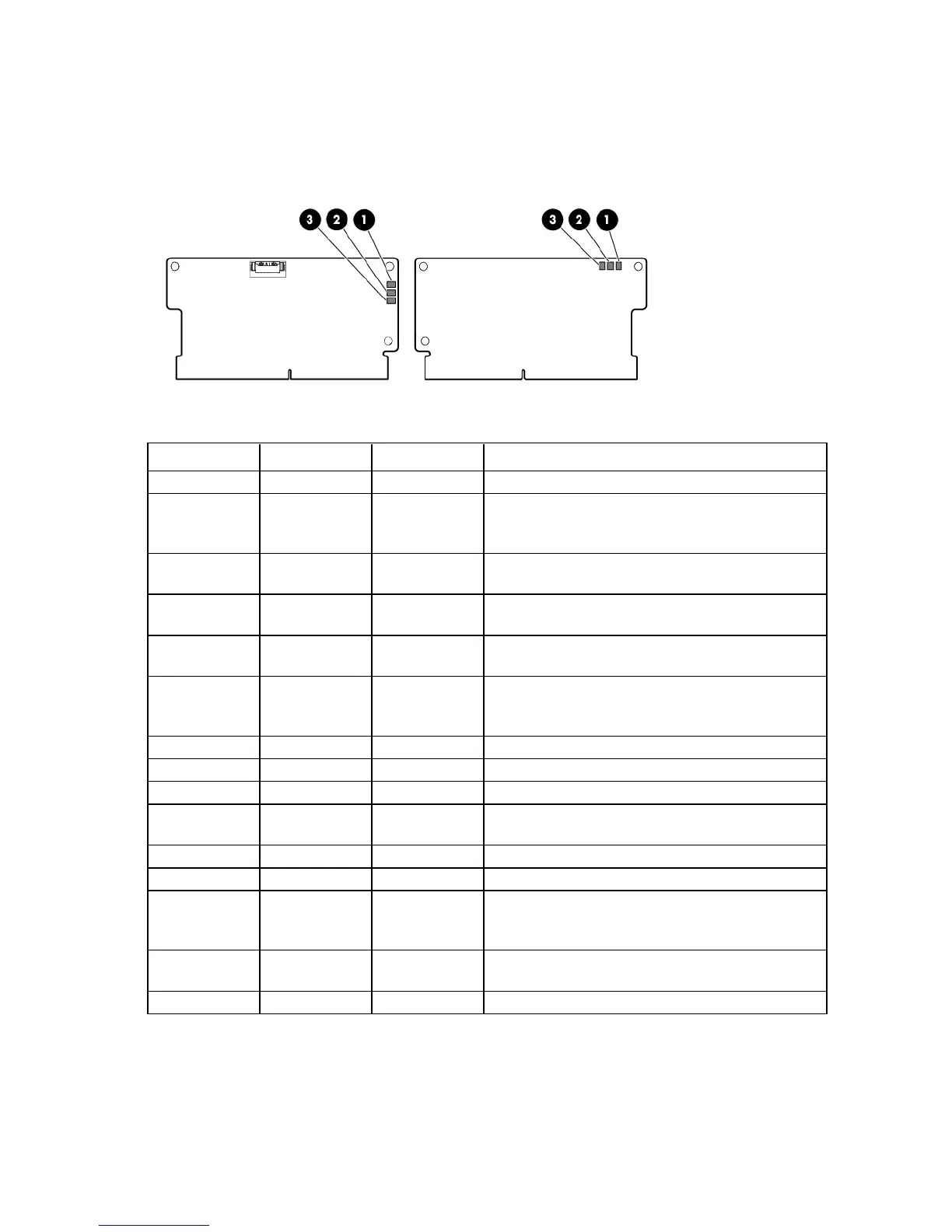

FBWC module LED definitions
The FBWC module has three single-color LEDs (one amber and two green). The LEDs are duplicated on the
reverse side of the cache module to facilitate status viewing.
1 - Amber 2 - Green 3 - Green Interpretation
Off
Off Off The cache module is not powered.
Off
Flashing 0.5 Hz Flashing 0.5 Hz The cache microcontroller is executing from within its
boot loader and receiving new flash code from the host
controller.
Off
Flashing 1 Hz Flashing 1 Hz The cache module is powering up, and the capacitor
pack is charging.
Off
Off Flashing 1 Hz The cache module is idle, and the capacitor pack is
charging.
Off
Off On The cache module is idle, and the capacitor pack is
charged.
Off
On On The cache module is idle, the capacitor pack is charged,
and the cache contains data that has not yet been
written to the drives.
Off
Flashing 1 Hz Off A backup is in progress.
Off
On Off The current backup is complete with no errors.
Flashing 1 Hz
Flashing 1 Hz Off The current backup failed, and data has been lost.
Flashing 1 Hz
Flashing 1 Hz On A power error occurred during the previous or current
boot. Data may be corrupt.
Flashing 1 Hz
On Off An overtemperature condition exists.
Flashing 2 Hz
Flashing 2 Hz Off The capacitor pack is not attached.
Flashing 2 Hz
Flashing 2 Hz On The capacitor has been charging for 10 minutes, but
has not reached sufficient charge to perform a full
backup.
On
On Off The current backup is complete, but power fluctuations
occurred during the backup.
On
On On The cache module microcontroller has failed.

HP ProLiant ML310e Specifications

General

Bus type	DMI
Stepping	C0
FSB Parity	No
Scalability	1S
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V3
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor codename	Haswell
Motherboard chipset	Intel® C222
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Thermal solution specification	PCG 2013D
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	3.5 \
HDD speed	7200 RPM
RAID levels	0, 1, 10
HDD interface	Serial ATA III
Optical drive type	DVD-RW
Total storage capacity	1000 GB
Maximum storage capacity	16 TB
Supported storage drive interfaces	SAS, Serial ATA
Internal memory	4 GB
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 4 GB
Maximum graphics card memory	16 MB
On-board graphics card model	Not available
Graphics card	G200
Graphics card family	Matrox
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express slots version	3.0
Operating system installed	-
Compatible operating systems	Windows Server\\r Ubuntu\\r Red Hat Enterprise Linux\\r SUSE Linux Enterprise Server\\r VMware
Noise level	26 dB
Chassis type	Tower (4U)
Power supply	350 W
Power supply input frequency	47/63 Hz
Certification	FCC; CISPR 22; EN55022; EN55024; FCC CFR 47; ICES-003; CNS13438; GB9254; K22; K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
Processor ARK ID	75052
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	475.2 mm
Width	175 mm
Height	368.2 mm
Weight	18960 g
