Hardware options installation 35
10.

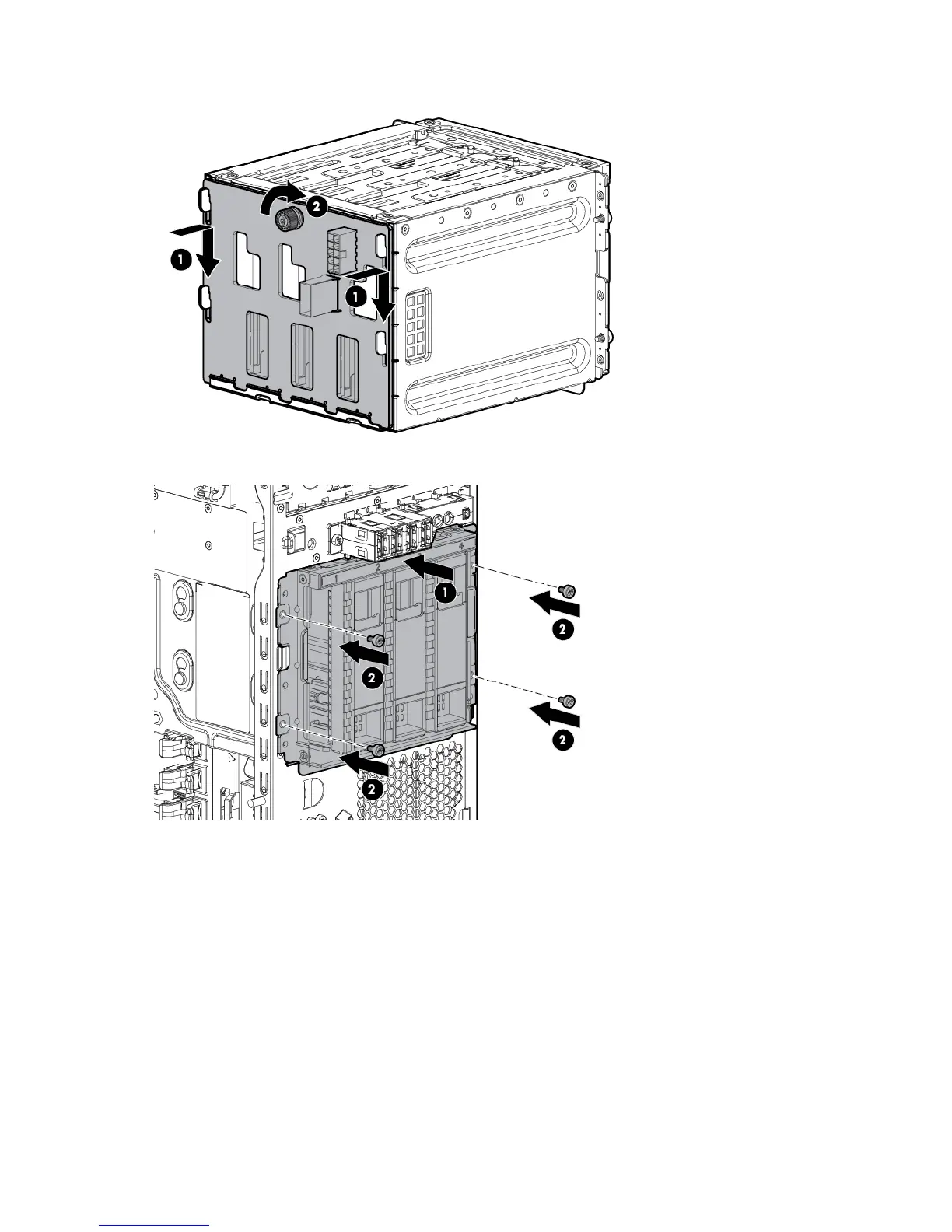

Attach the hot-plug drive backplane to the drive cage, and then tighten the thumbscrew.
11. Install the drive cage assembly.
12. Connect the drive backplane cables:
a. Connect the power cable to the backplane.
b. Do one of the following:
— Connect the Mini-SAS cable to the system board (SATA drive support only).
