HP ProLiant ML330 Generation 3

Removal and Replacement Procedures

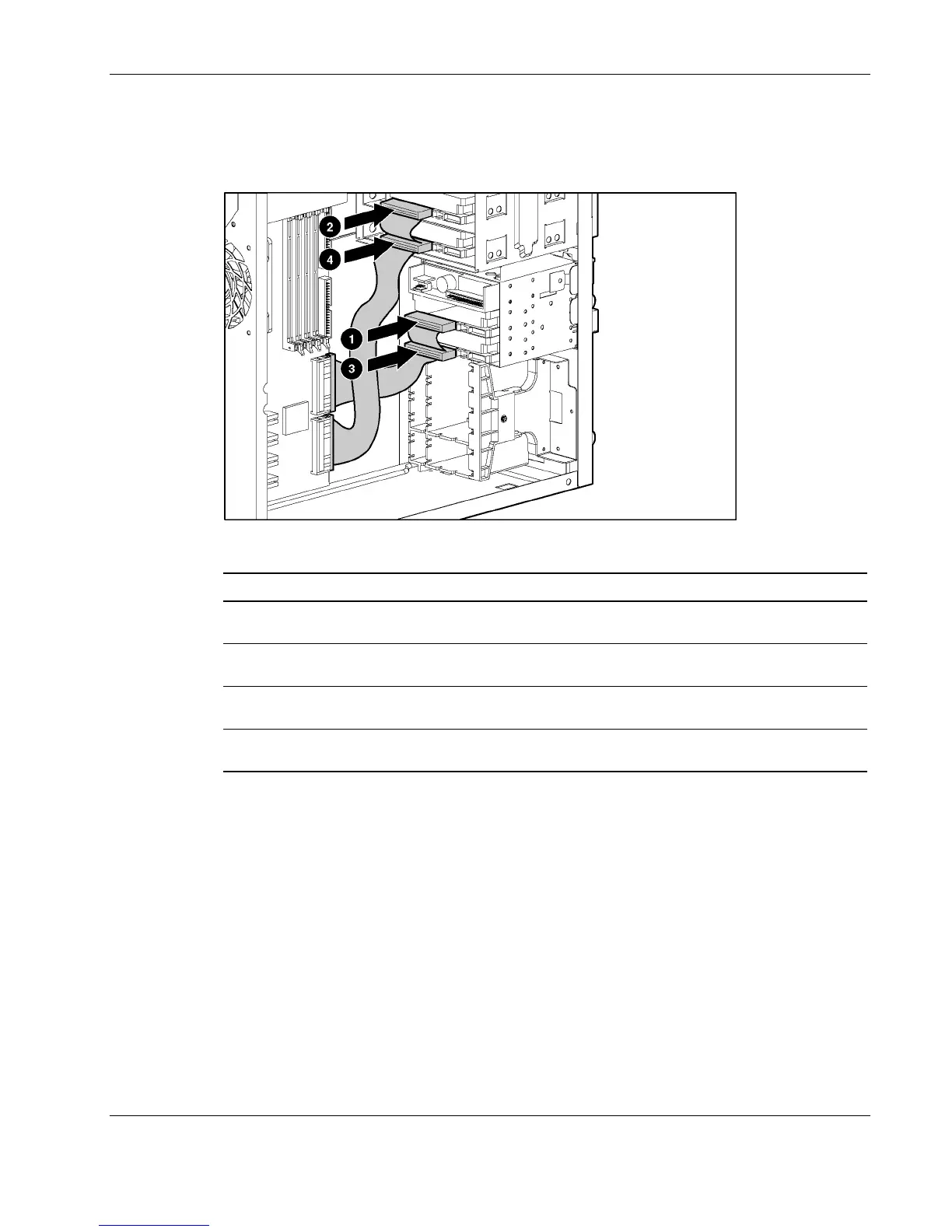

ATA Device Cabling
NOTE: Air baffle removed for clarity.
Table 2-1: ATA Cabling Routing
Item Channel/Cable Cable Connector Drive Location
1 ATA/100 RAID primary
controller
Device 0 Hard drive bay 2
2 ATA/100 RAID secondary
controller
Device 0 Media bay 3
3 ATA/100 RAID primary
controller
Device 1 Hard drive bay 3
4 ATA/100 RAID secondary
controller
Device 1 Media bay 4
HP ProLiant ML330 Generation 3 Server Maintenance and Service Guide 2-17
