HP ProLiant ML330 Generation 3

Removal and Replacement Procedures

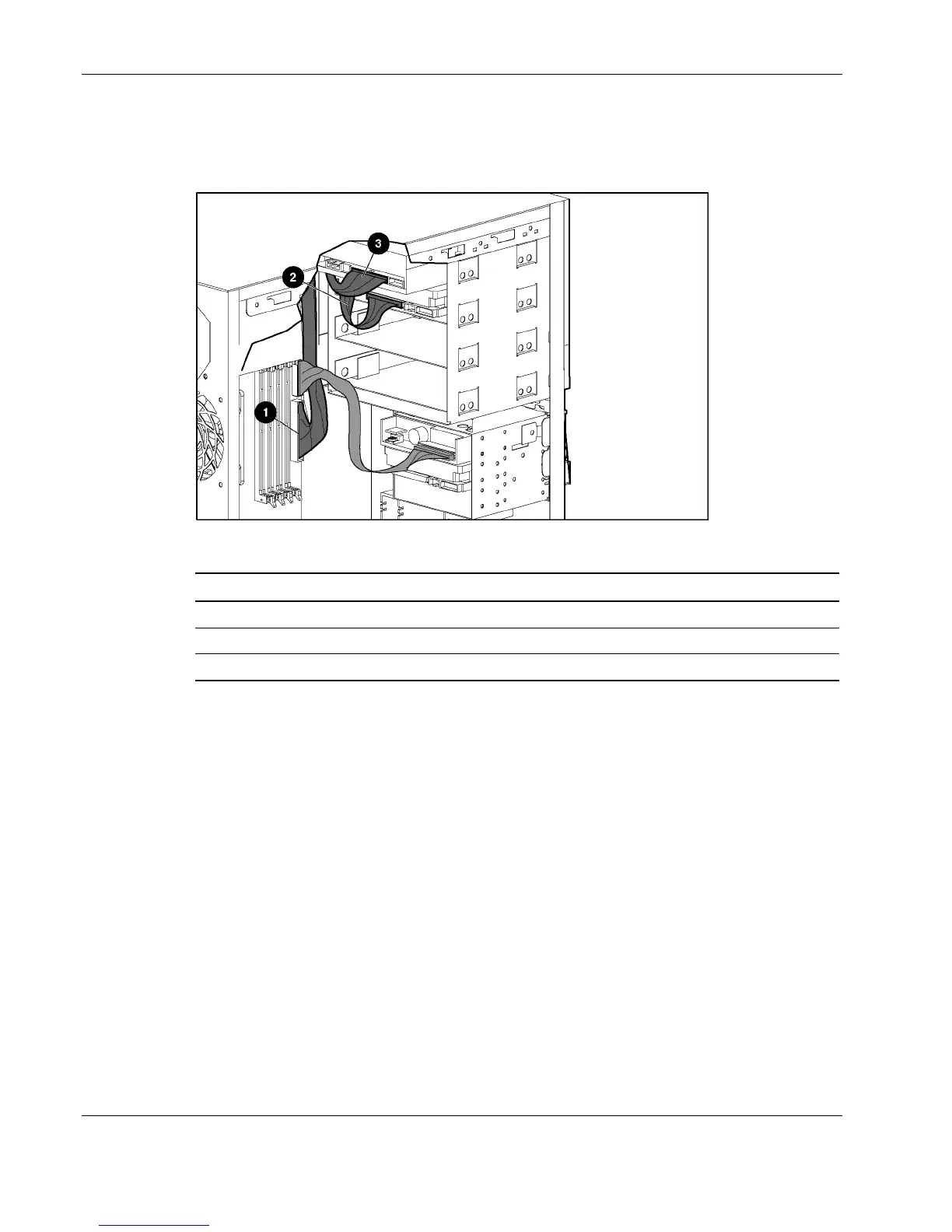

ATAPI Tape Drive Cabling
NOTE: Air baffle removed for clarity.
Table 2-2: ATAPI Tape Drive Cable Routing
Item Connector
1 Integrated IDE channel
2 Device 1
3 Device 0
2-18 HP ProLiant ML330 Generation 3 Server Maintenance and Service Guide
