HP ProLiant ML370 G6

Cabling 112

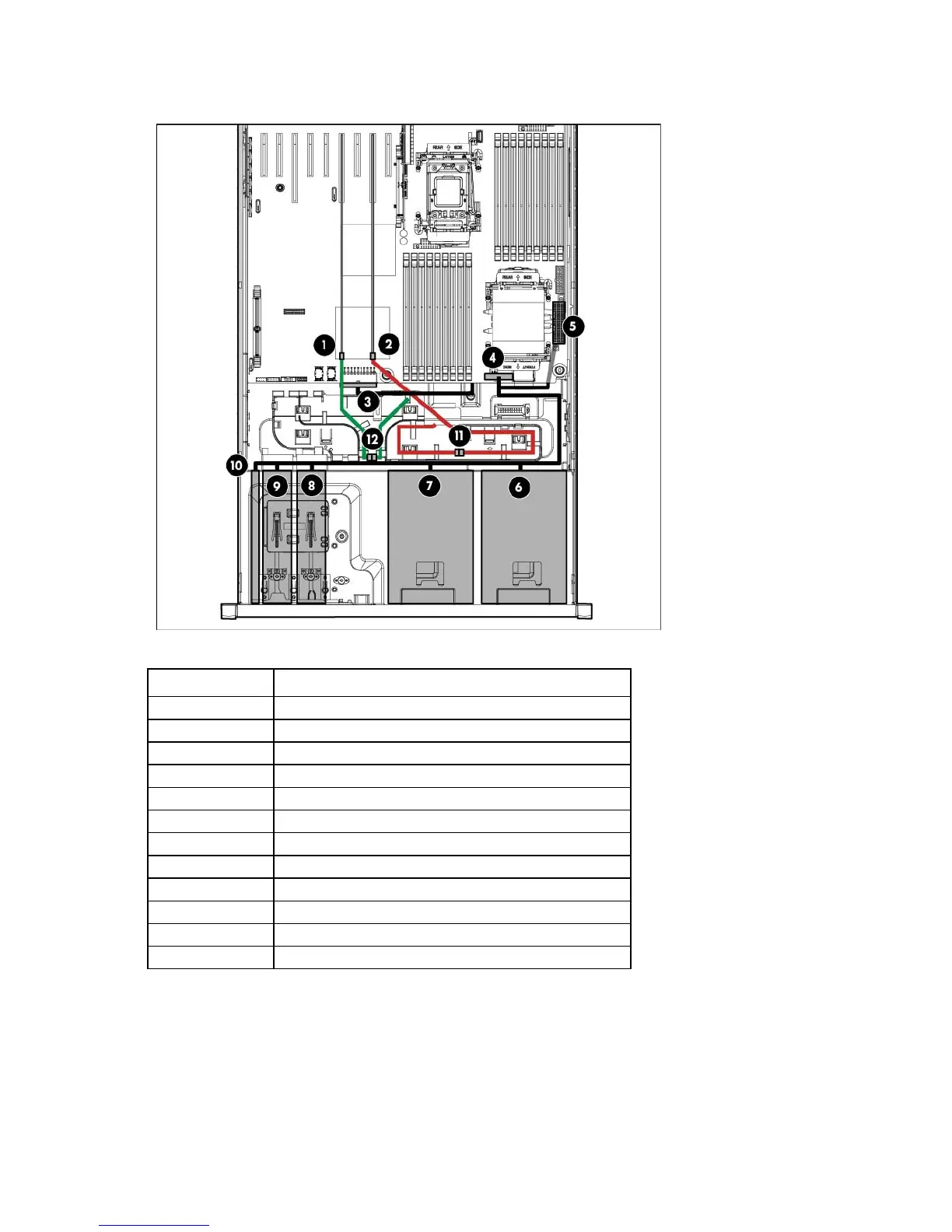

Server power cabling (maximum configuration)
The colors are shown for illustration purposes only.
Item Description
1
Video card, slot 6
2
Video card, slot 8
3
Power connector
4
Power supply backplane connector
5
24-pin power connector
6
Hard drive cage 1
7
Hard drive cage 2
8
Half-height media device
9
DVD-ROM drive
10
Slimline optical drive
11
P9 power connector
12
P12 power connector
