HP ProLiant ML370 G6 - System Board Components

Component identification 13

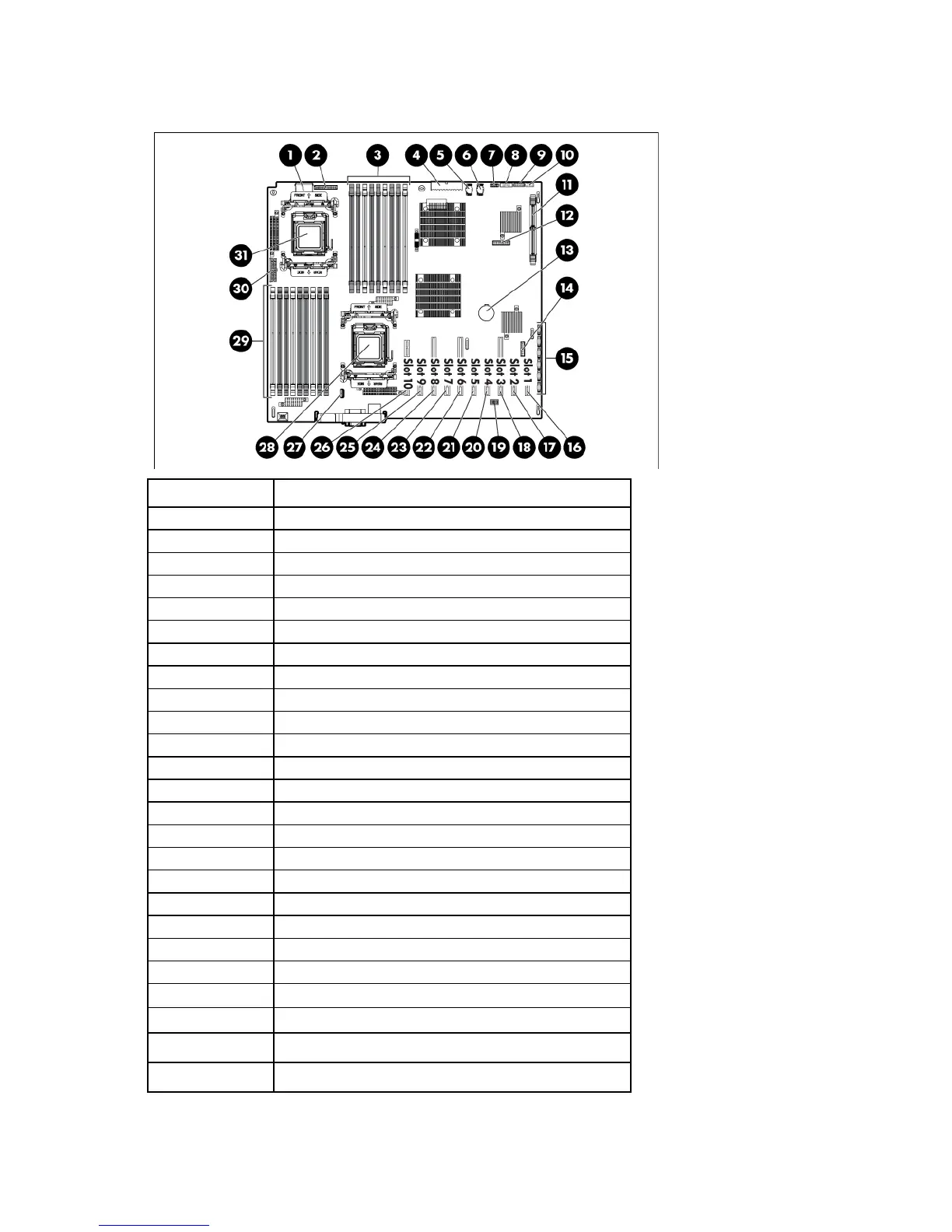

System board components
Item Description
1
SD card slot
2
Power backplane connector
3
Processor 1 DIMM slots
4
Power supply connector
5
SAS connector B
6
SAS connector A
7
Front panel connector
8
Systems Insight Display connector
9
Front video connector
10
Front USB connector
11
Smart Array P410i memory module
12
Reserved
13
System battery
14
TPM connector
15
SATA connectors (6)
16
Slot 1 PCIe x8 (4, 2, 1)
17
Slot 2 PCIe2 x8 (4, 2, 1)
18
Slot 3 PCIe2 x16 (16, 8, 4, 2, 1)
19
System maintenance switch
20
Slot 4 PCIe2 x8 (4, 2, 1)
21
Slot 5 PCIe2 x8 (4, 2, 1)
22
Slot 6 PCIe2 x16 (8, 4, 2, 1)
23
Slot 7 PCIe2 x8 (4, 2, 1)
24
Slot 8 PCIe2 x16 (16, 8, 4, 2, 1)
25
Slot 9 PCIe2 x8 (4, 2, 1)
