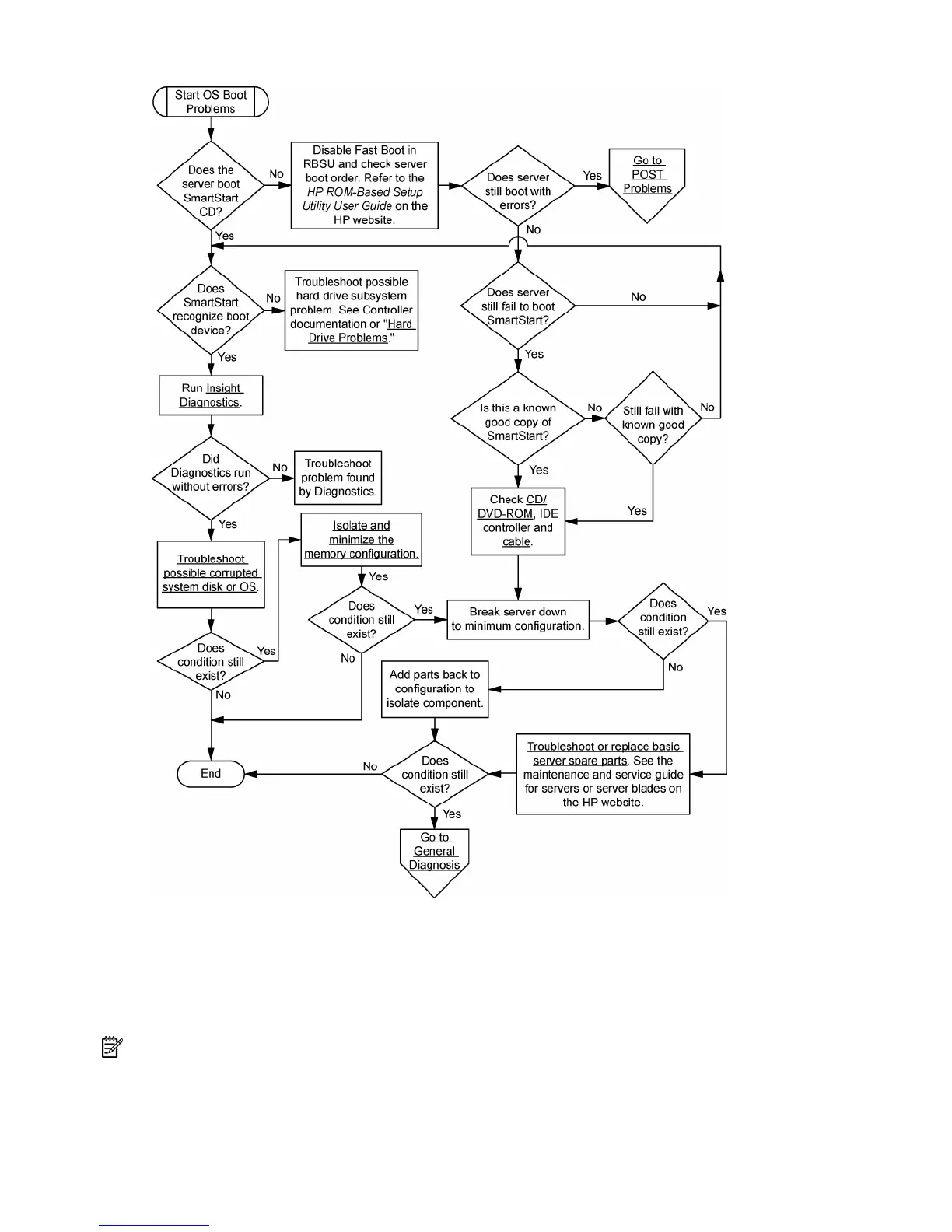

Diagnostic flowcharts 25

Server fault indications flowchart

Symptoms:

• Server boots, but a fault event is reported by Insight Management Agents (on page 54)

• Server boots, but the internal health LED or external health LED is red or amber

NOTE: For the location of server LEDs and information on their statuses, refer to the server documentation.

Possible causes:

• Improperly seated or faulty internal or external component
