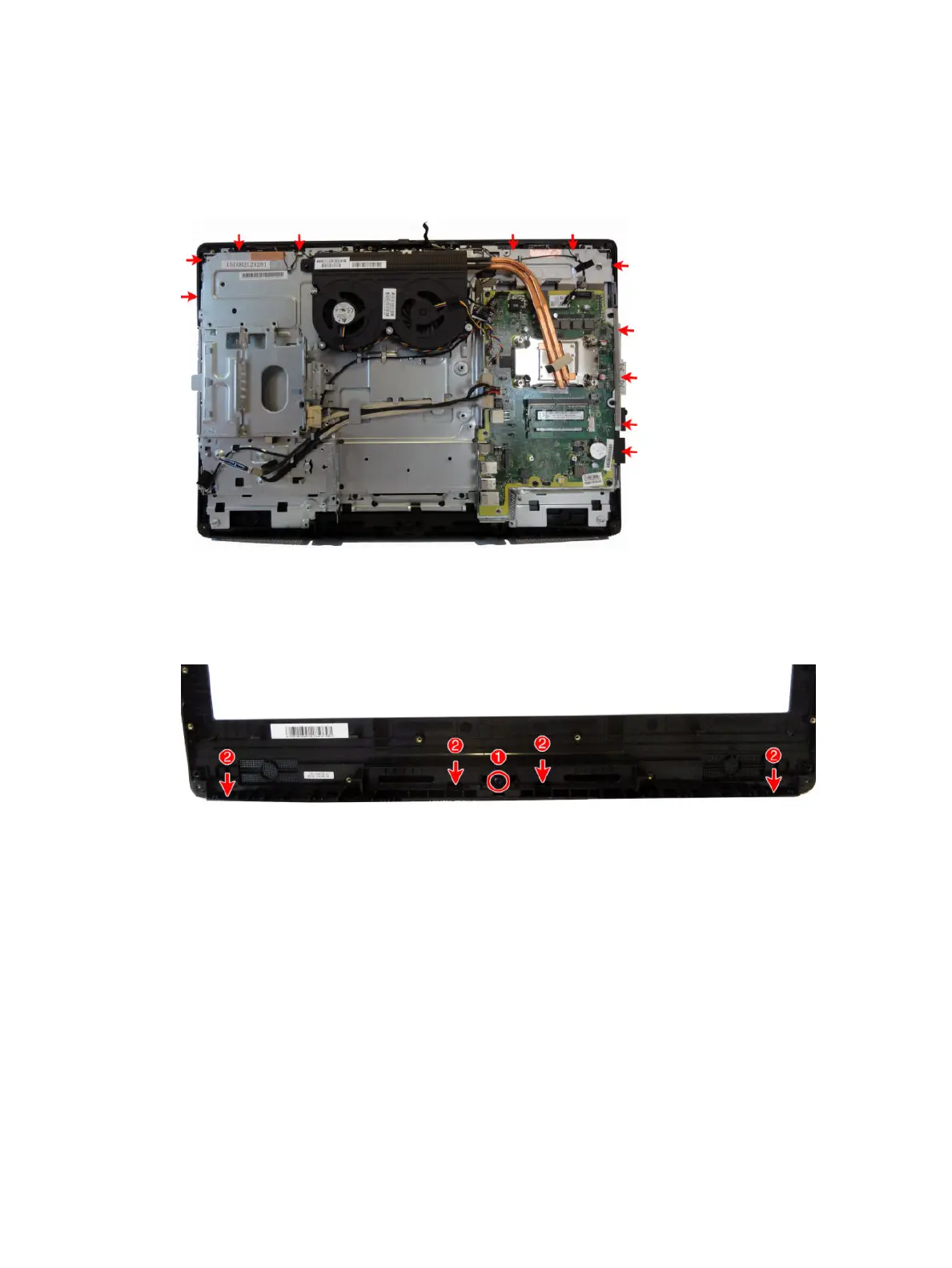

11. Disengage the tabs along the sides that secure the bezel to the frame. Tabs are as follows:
2 tabs along the left side
4 tabs along the top
5 tabs on the right side
12. Separate the main frame from the bezel.
13. If it is necessary to remove the bottom trim from the bezel, position the bezel so the inside faces
outward, remove the Torx screw (1), use a at tool to disengage the tabs (2), and then lift the trim from
the bezel.
14. To separate the display panel from the main frame:
a. Disconnect the backlight cable from the rear of the display panel (1).
