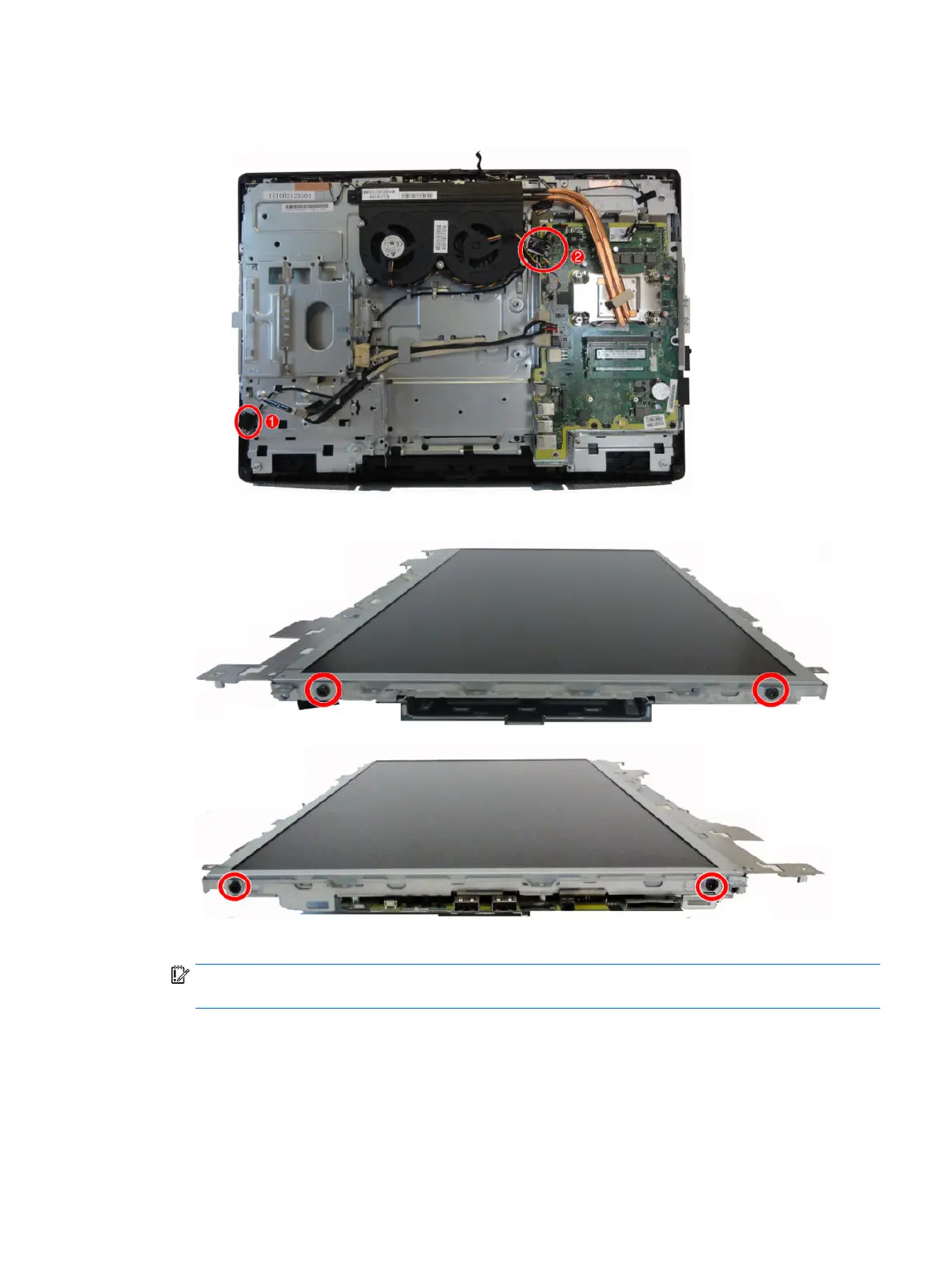

b. Disconnect the display (LVDS) cable from the system board, and then push the cable into the hole
that routes through the main frame (2).
c. Remove the two Torx screws from each side of the display panel.
15. Separate the panel from the frame by lifting the frame up o the panel.
IMPORTANT: Make sure the larger LVDS display cable and smaller backlight cable route through the
holes in the frame when separating the panel from the frame.
Bezel, bezel bottom trim, display panel 57
