HP RP9 G1 9015 - CPU Installing

EL-MF877-00 Page 9
Template Revision B
PSG instructions for this template are available at EL-MF877-01

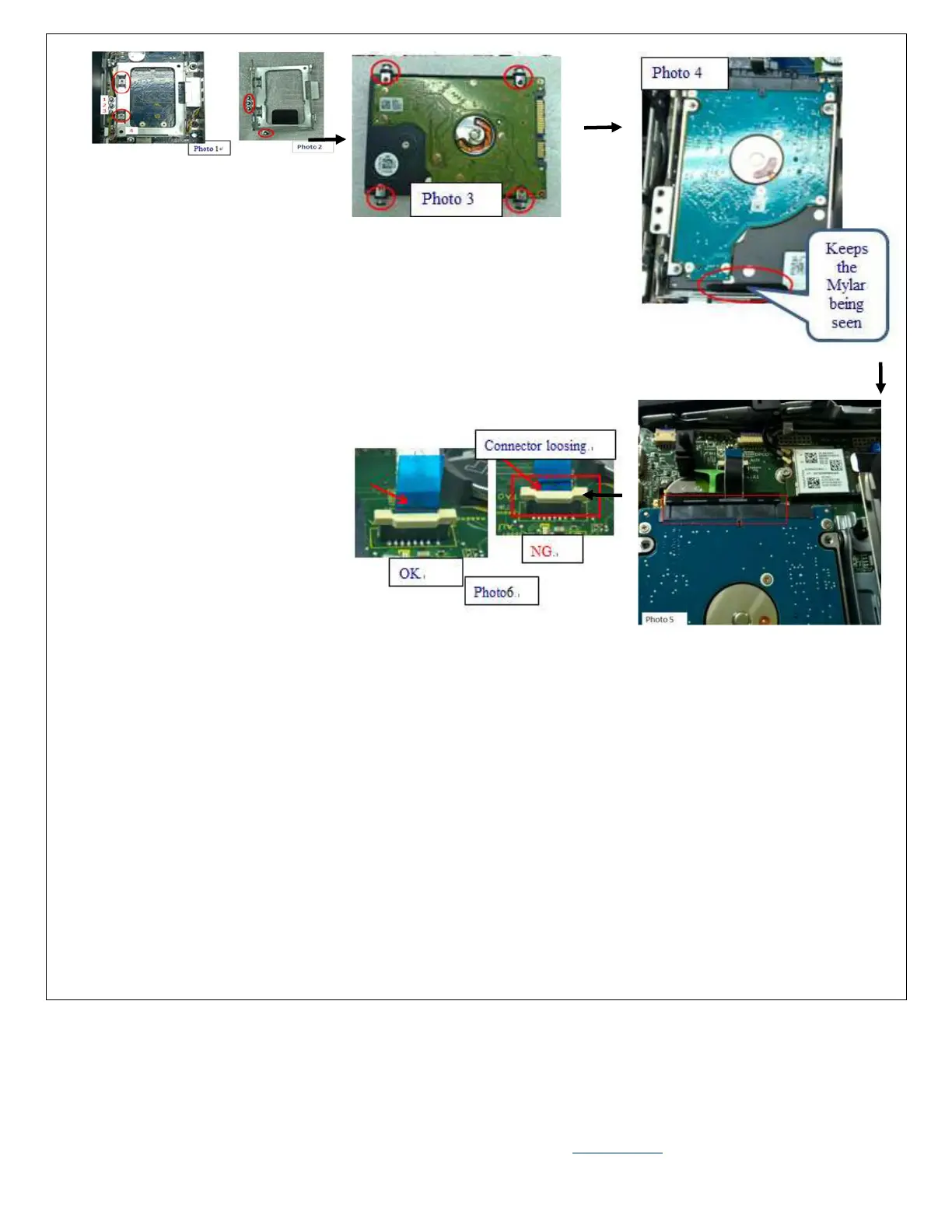

Unscrew the 2 screws and remove
the HDD bracket See photo 1 and
2
Take 4 screw to lock
the, （#1）1.5+/-
0.3kgf.cm
See photo 3
Install HDD in the unit
See photo4
Check the Mylar connected to the MB
rightly, see photo 6
Insert the HDD SATA cable to HDD
See photo5
Disassembly process (CPU Installing)
