FC4-16 components

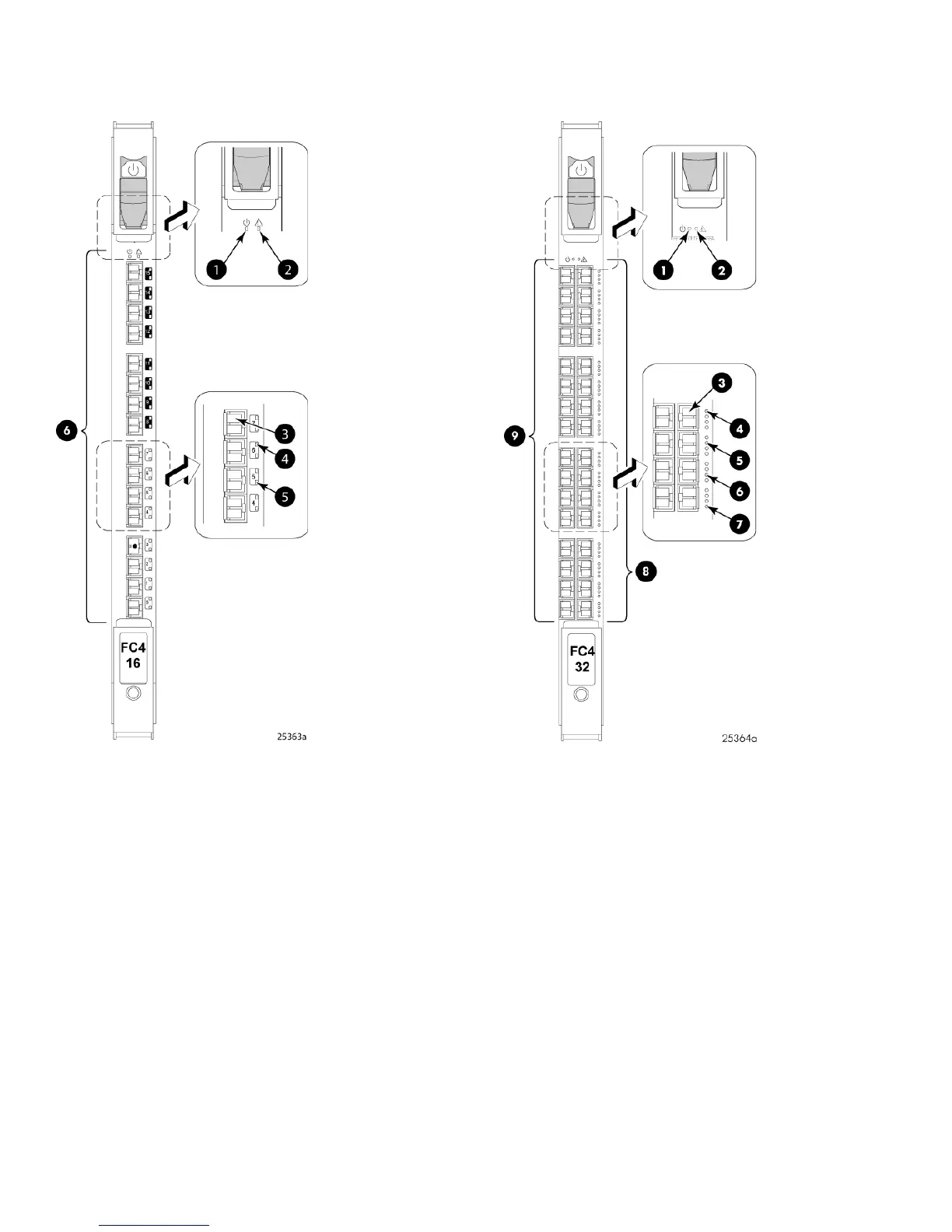

Figure 8 FC4-16
2. Status LED1. Power LED
4. Port speed LED3. FC Port
6. FC ports 0–155. Port status LED
FC4-32 components
Figure 9 FC4-32
2. Status LED1. Power LED
4. Port speed LED (left port)3. FC Port
6. Port speed LED (right port)5. Port status LED (left port)
8. FC ports 16–317. Port status LED (right port)
9. FC ports 0–15
