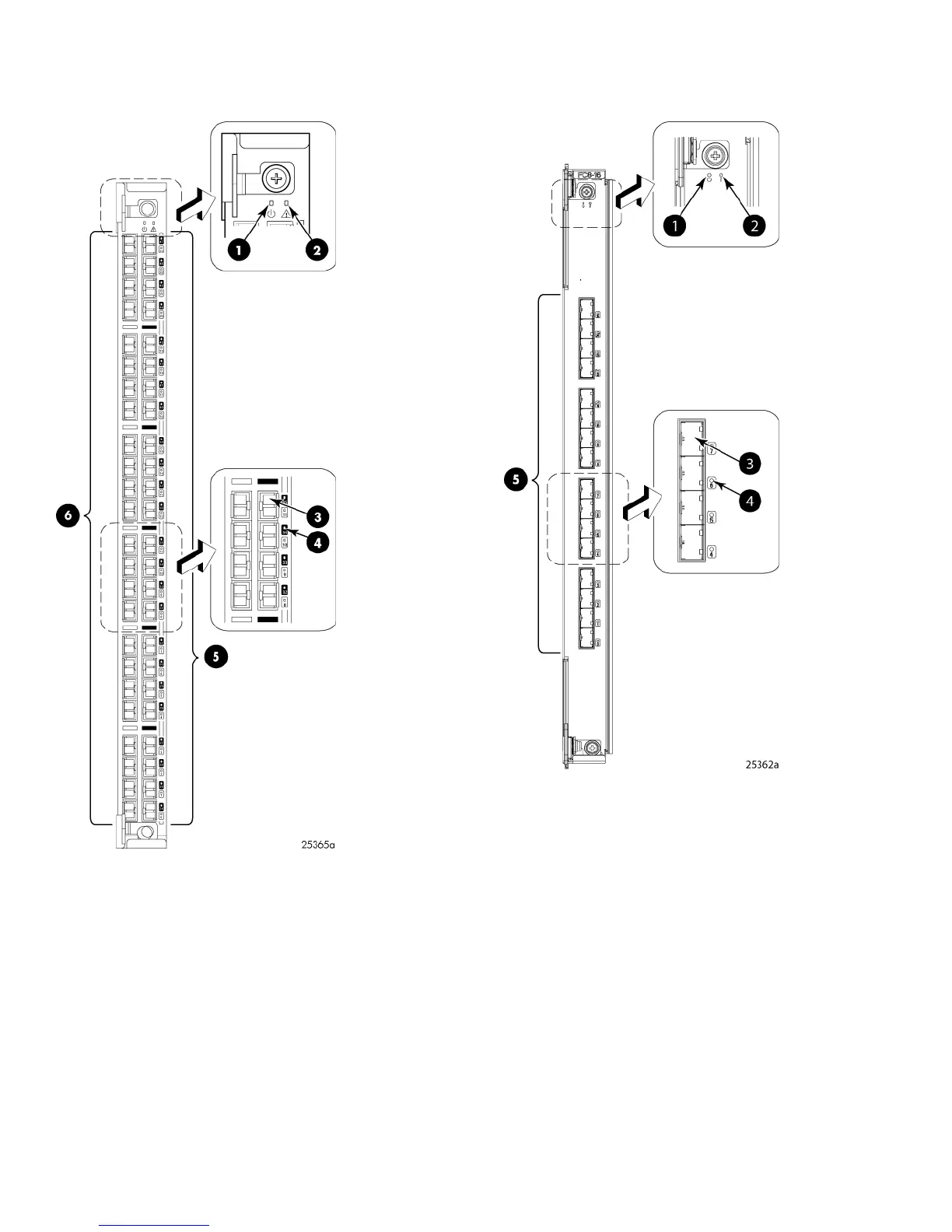

FC4-48 components
Figure 10 FC4-48
2. Status LED1. Power LED
4. Port status LED3. FC Port
6. FC ports 0–235. FC ports 24–47
FC8-16 components
Figure 11 FC8-16
2. Status LED1. Power LED
4. Port status LED3. FC Port
5. FC ports 0–15
