FC8-32 components

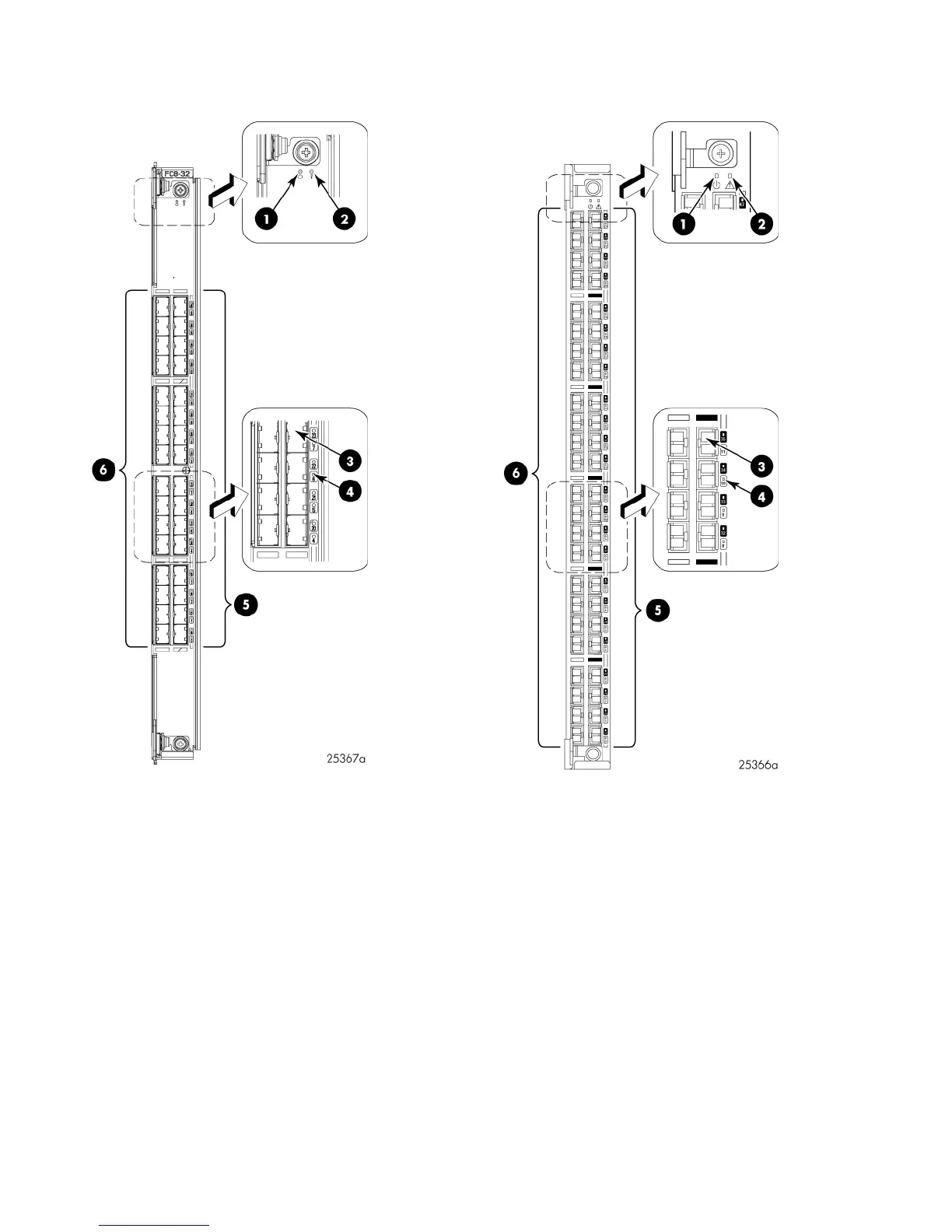

Figure 12 FC8-32
2. Status LED1. Power LED
4. Port status LED3. FC Port
6. FC ports 0–155. FC ports 16–31
FC8-48 components
Figure 13 FC8-48
2. Status LED1. Power LED
4. Port status LED3. FC Port
6. FC ports 0–235. FC ports 24–47
