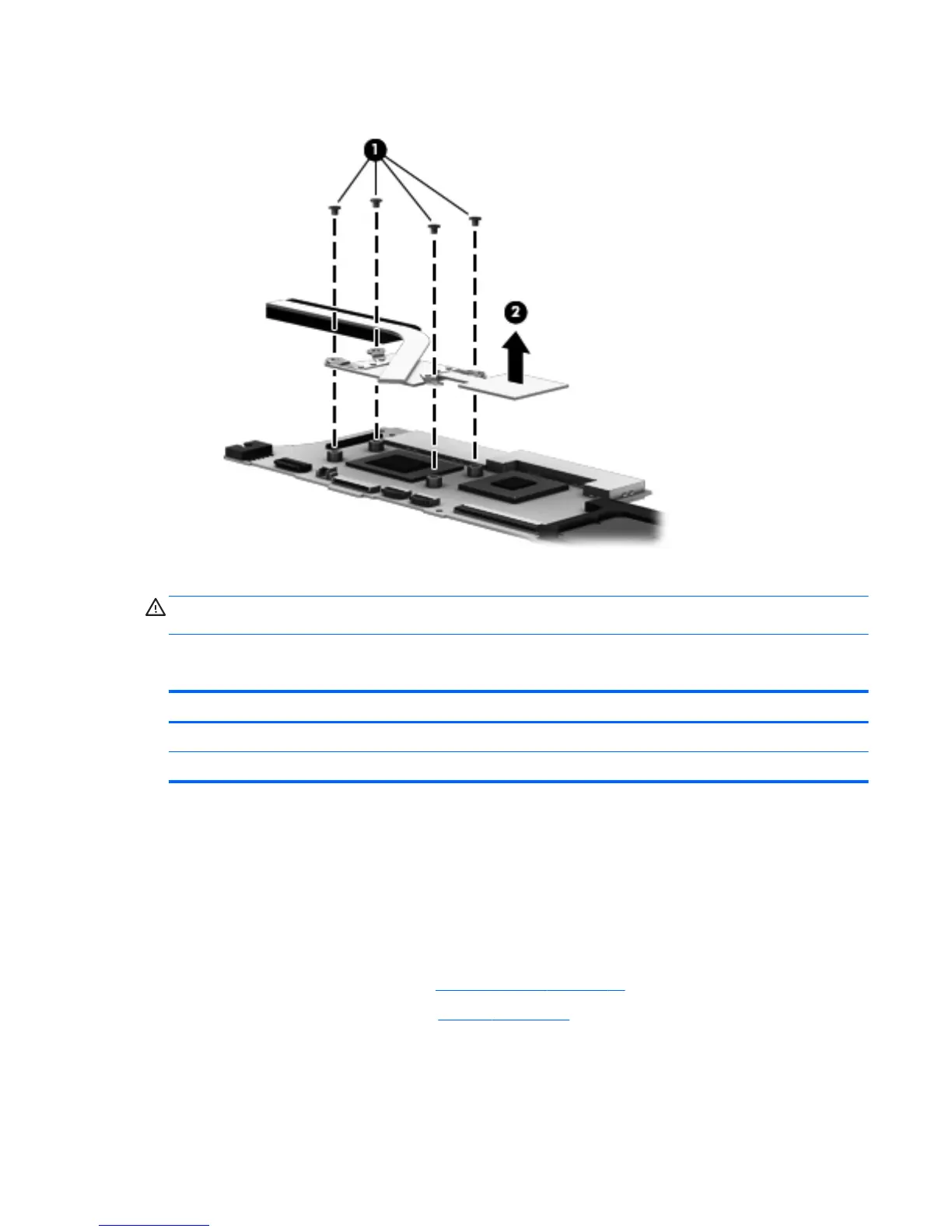

2. Remove the heat sink (2).
Reverse this procedure to install the heat sink..
CAUTION: These screws must be installed in the sequence that is marked on the heat sink so that
the correct pressure is applied to the processor and other components.
Speakers
Description Spare part number
Speaker Kit, front (includes front speaker and cable) 689951-001
Speaker Kit, rear (includes front speaker and cable) 689952-001
Before removing the front speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the base enclosure (see
Base enclosure on page 27).
5. Disconnect the battery cable (see
Battery on page 29).
Remove the front speakers:
1. Turn the computer, with the front edge toward you.
2. Disconnect the front speaker cable (1) from the USB/audio board.
Component replacement procedures 41
