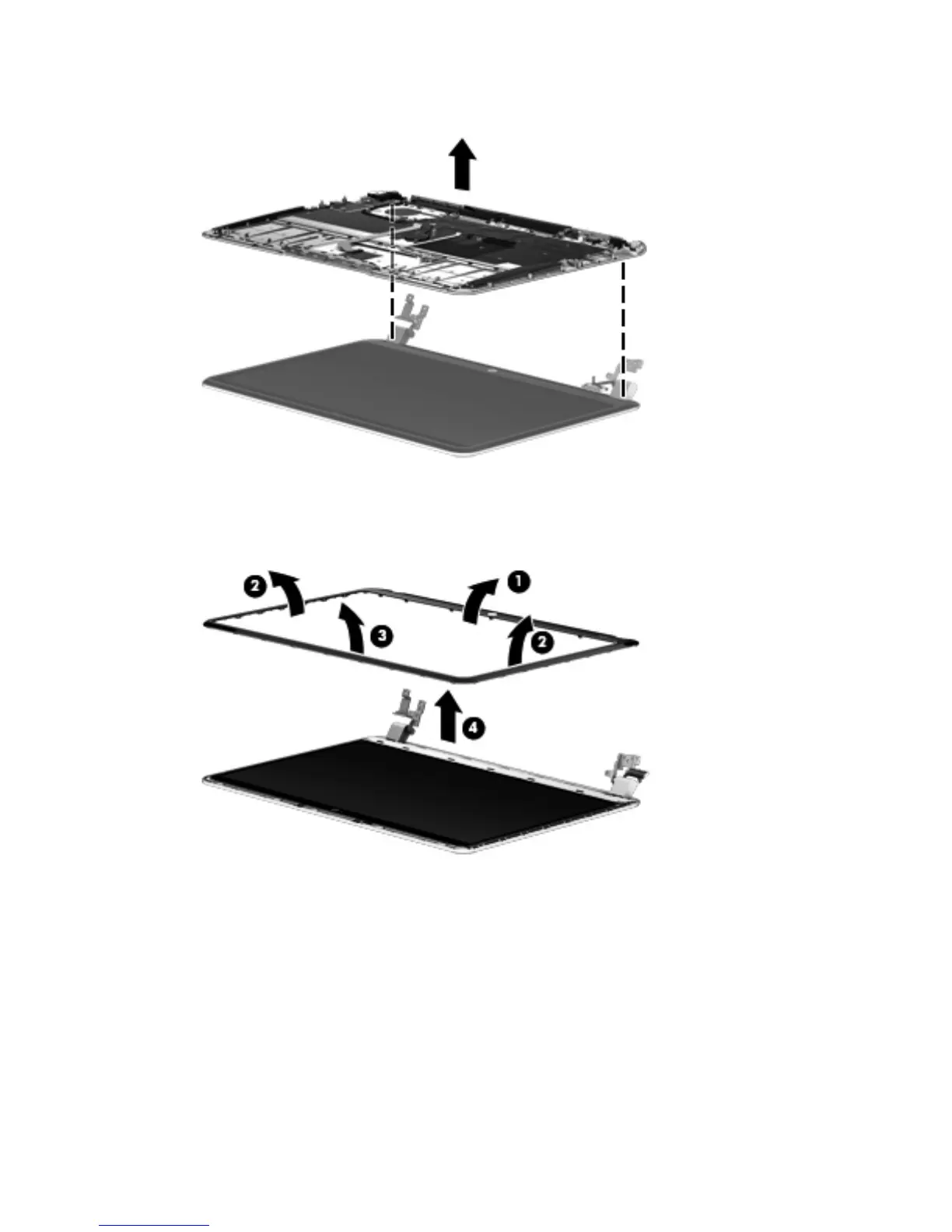

7. Remove the top cover from the display assembly.
8. Loosen the bottom edge of the plastic bezel cover (1) from all four sides of the display panel.
9. Loosen the left and right side edges of the plastic bezel cover (2), and then loosen the top edge
of the plastic bezel cover (3). Remove the plastic bezel cover (4).
52 Chapter 4 Removal and replacement procedures
