Figure 17 shows the connections to loop 2 between the EVA6400 controllers and disk enclosures 4,
5, and 6 (S-4, S-5, S-6).

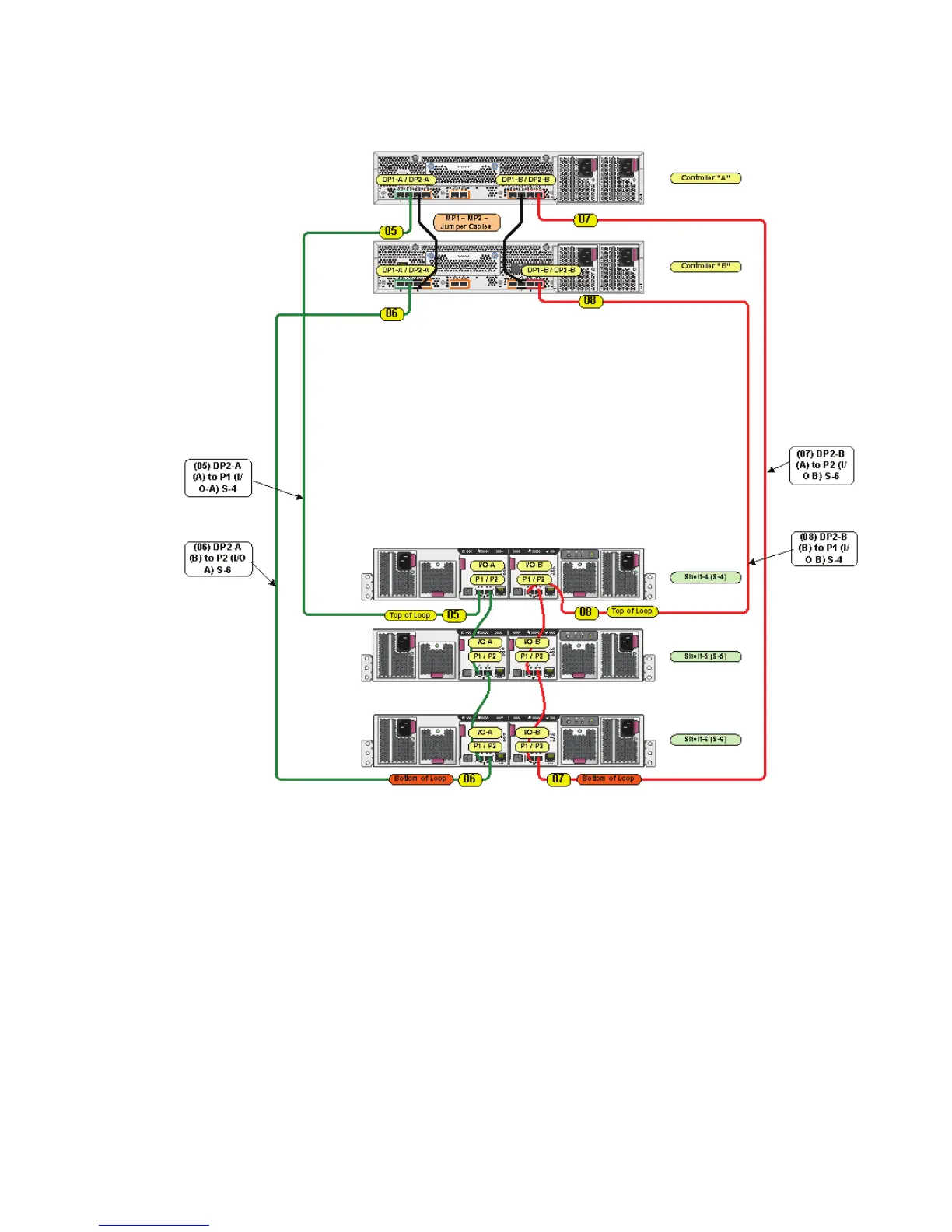

Figure 17 Fibre Channel cabling for the EVA6400 loop 2 connections (rear view, top-mounted
controllers)
HP StorageWorks 6400/8400 Enterprise Virtual Array installation guide 75
