Connecting EVA6400 controllers between the disk enclosures (2C18D)
Figure 19 shows the connections to loop 1 between the EVA6400 controllers and disk enclosures 1
through 9.

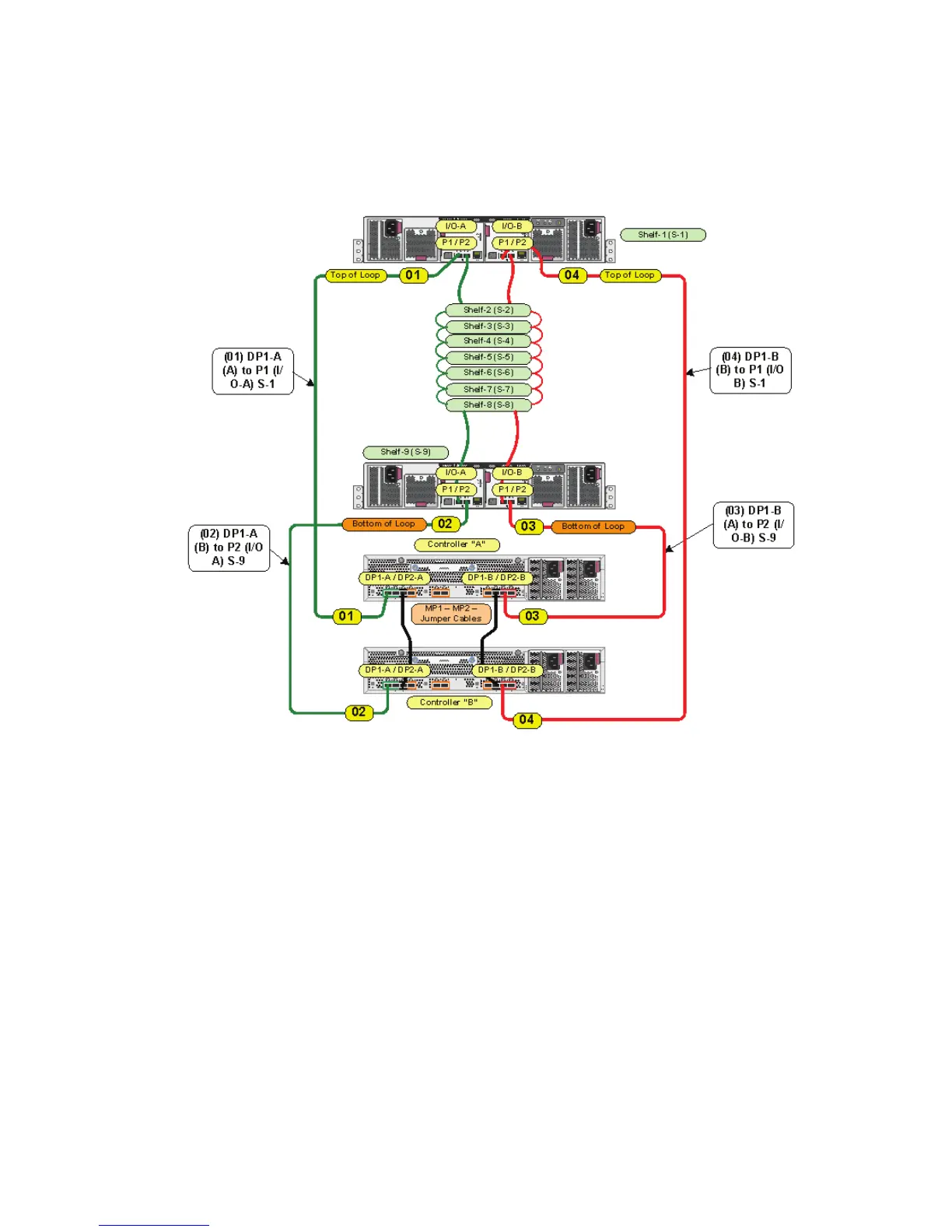

Figure 19 Fibre Channel cabling for the EVA6400 loop 1 connections (rear view, mid-mounted
controllers)
