Figure 20 shows the connections to loop 2 between the EVA6400 controllers and disk enclosures 10
through 18.

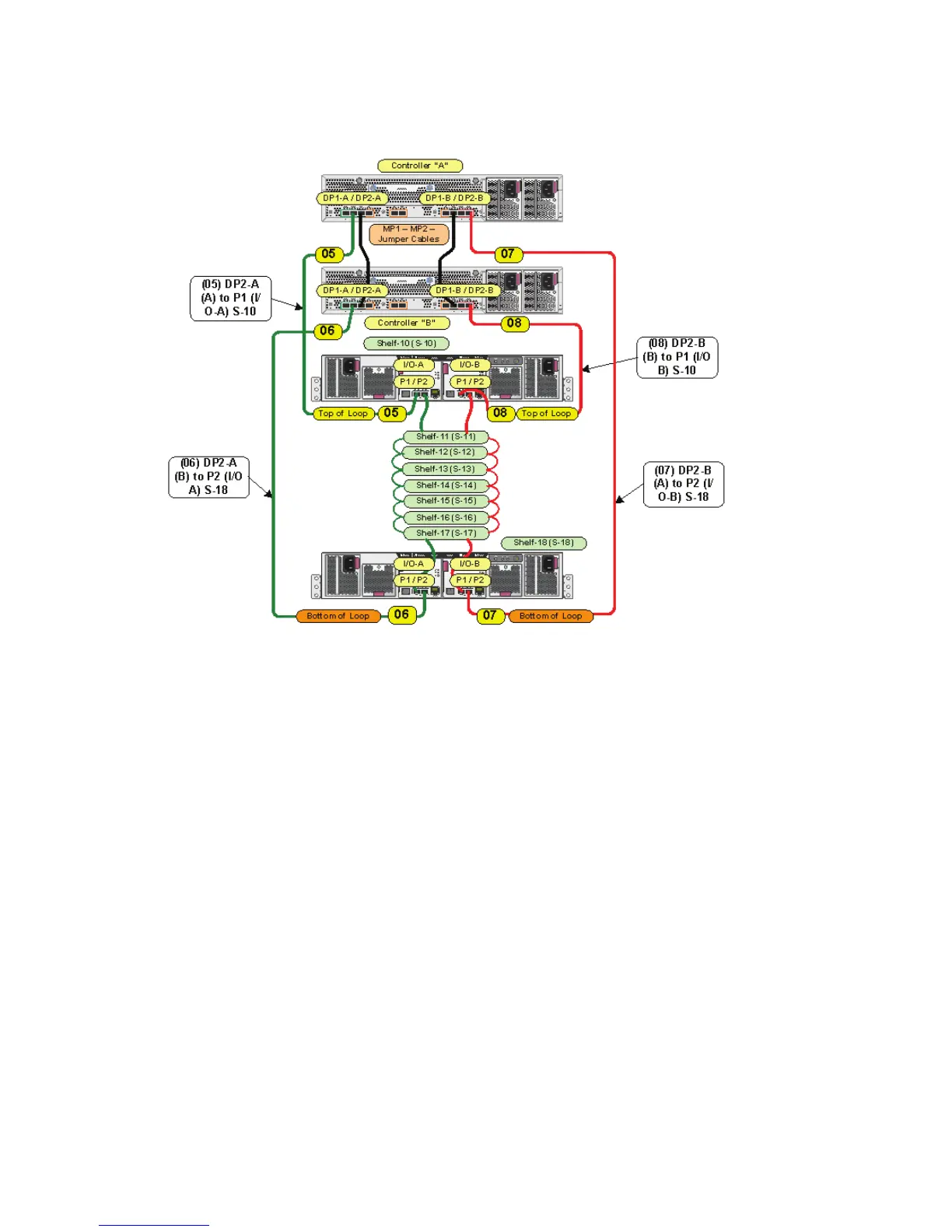

Figure 20 Fibre Channel cabling for the EVA6400 loop 2 connections (rear view, mid-mounted
controllers)
