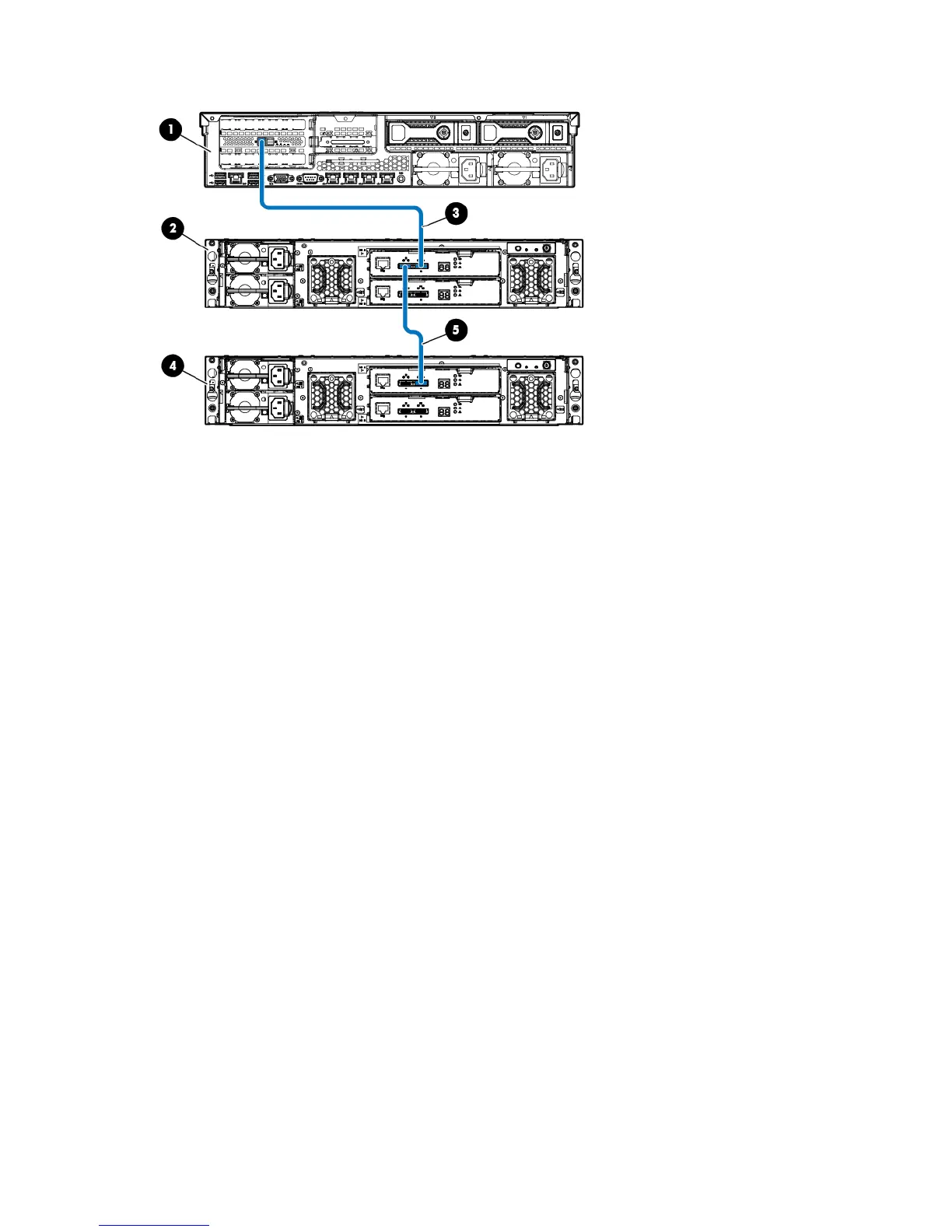

Figure 7 StoreEasy 1x50 with P441 controller connected to D2000/D3000 disk enclosures
1. P441 controller
2. D2000/D3000 enclosure 1
3. Connection between P441 controller and port 2 on I/O module A of D2600 enclosure
4. D2000/D3000 enclosure 2
5. Connection between port 1 of I/O module A of D2600 enclosure 1 and port 2 on I/O module A of D2600 enclosure2
