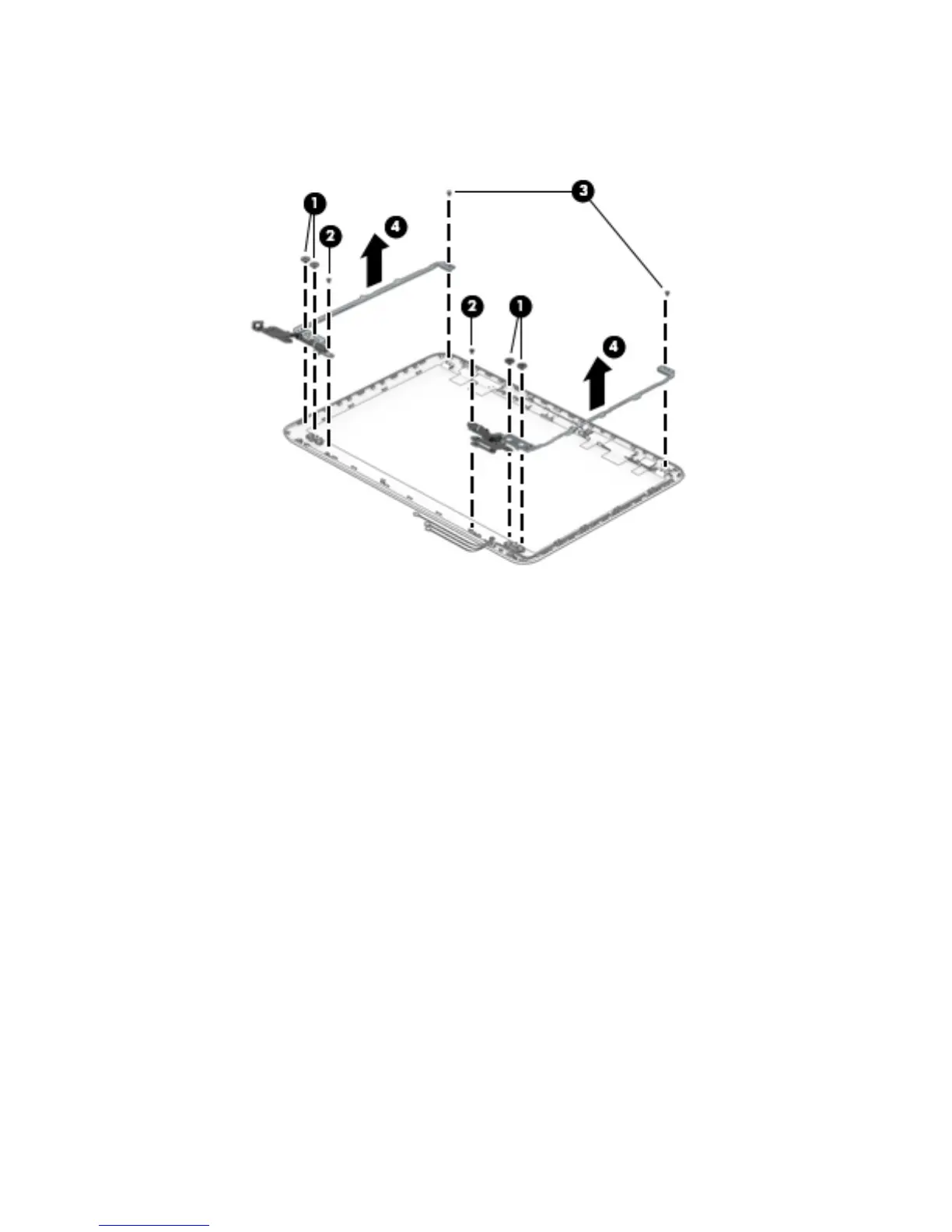

c. Remove the display hinges (4).
The display hinges are included in the Display Hinge Kit, spare part number 792775-001 for touch
screen models.
9. If it is necessary to replace the display panel cable:
a. Lift the Mylar tape from atop the connector on the panel (1), and then disconnect the cable from
the connector (2).
b. Disconnect the cable from the webcam module (3).
Component replacement procedures 59
