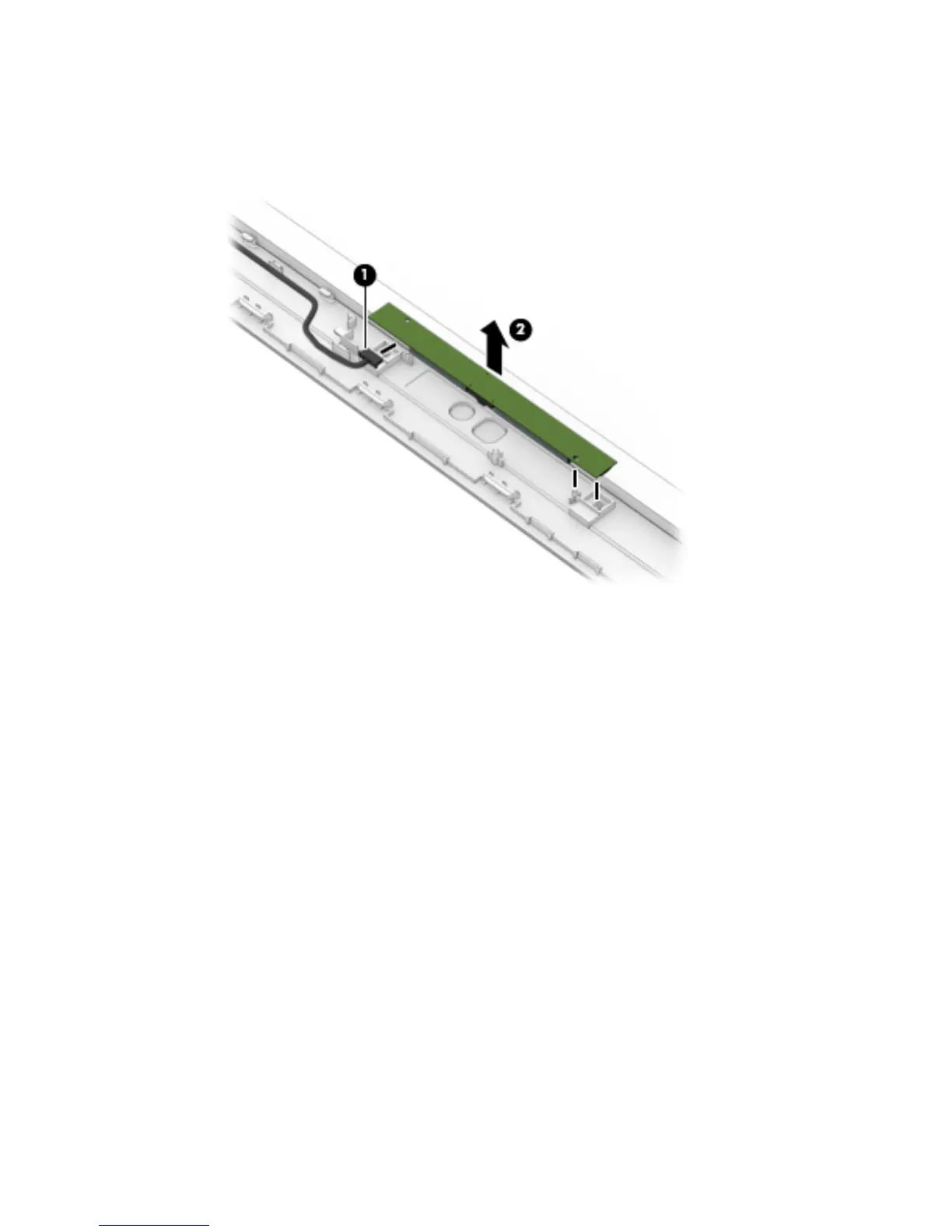

b. Detach and remove the module (2) from the display back cover. (The webcam/microphone module
is attached to the display back cover with double-sided adhesive.)
The webcam/microphone module is available using spare part number 792793-001 for models
with a touch screen.
8. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.5×3.0 broad head screws (1) that secure the display hinges to the
display back cover.
b. Remove the two Phillips PM2.0×2.5 screws (2) on the bottom of the hinges and the two Phillips
PM2.0×2.5 screws (3) at the top of the hinges that secure the hinges to the display back cover.
58 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
