TouchPad
NOTE: The TouchPad spare part kit includes the cable and double-sided adhesive.
Description Spare part number
In horizon blue finish 792905-001
In orchid magenta finish 797210-001
Before removing the TouchPad, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 28).

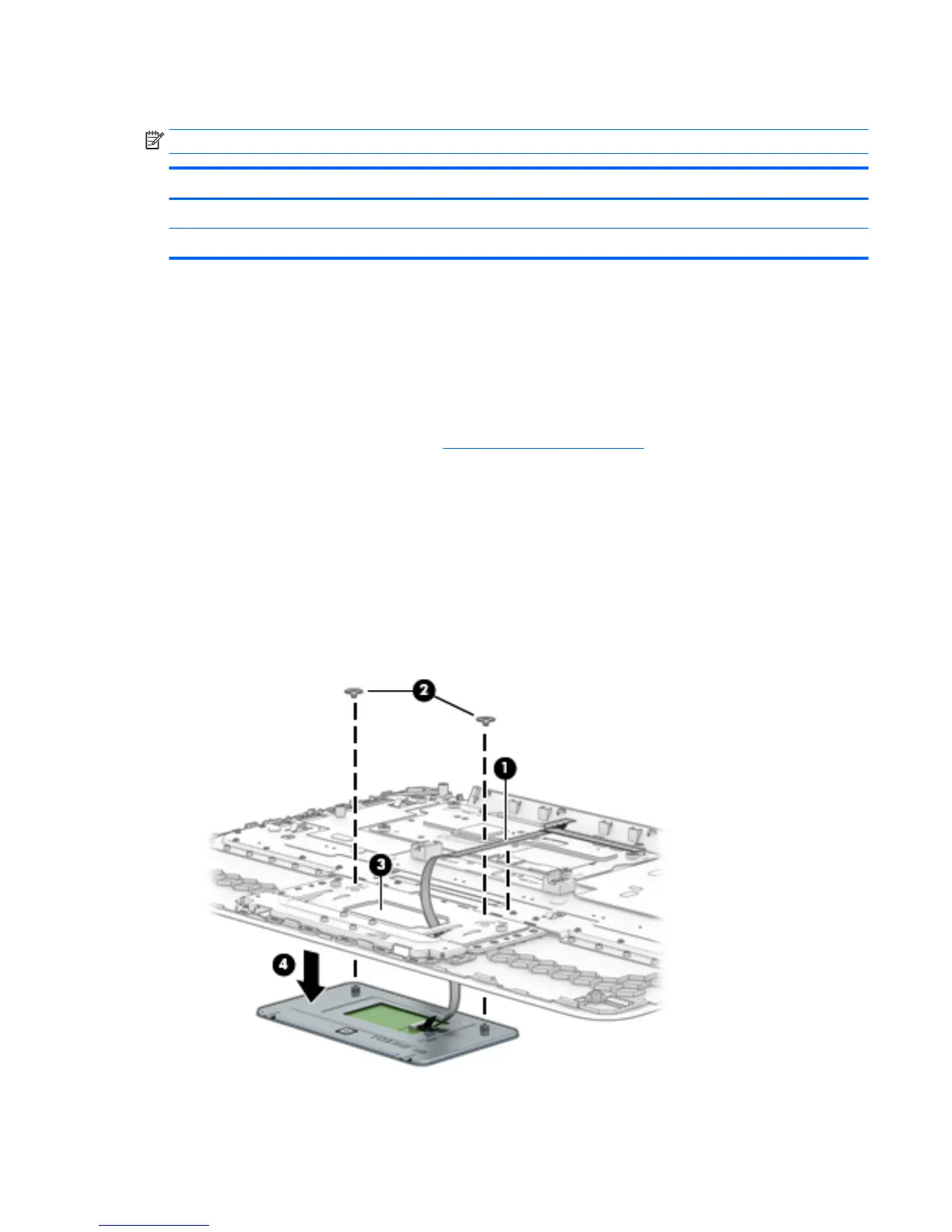

Remove the TouchPad:
1. Turn the keyboard/top cover upside down with the front toward you.
2. Detach the TouchPad cable (1) from the keyboard/top cover. (The TouchPad cable is attached to the
keyboard/top cover with double-sided adhesive.)
3. Remove the two Phillips PM1.9×2.0 broad head screws (2) that secure the TouchPad to the
keyboard/top cover.
4. Release the TouchPad (3) by pressing it through the opening in the keyboard/top cover.
5. Remove the TouchPad (4) and cable.
Reverse this procedure to install the TouchPad.
Component replacement procedures 33
