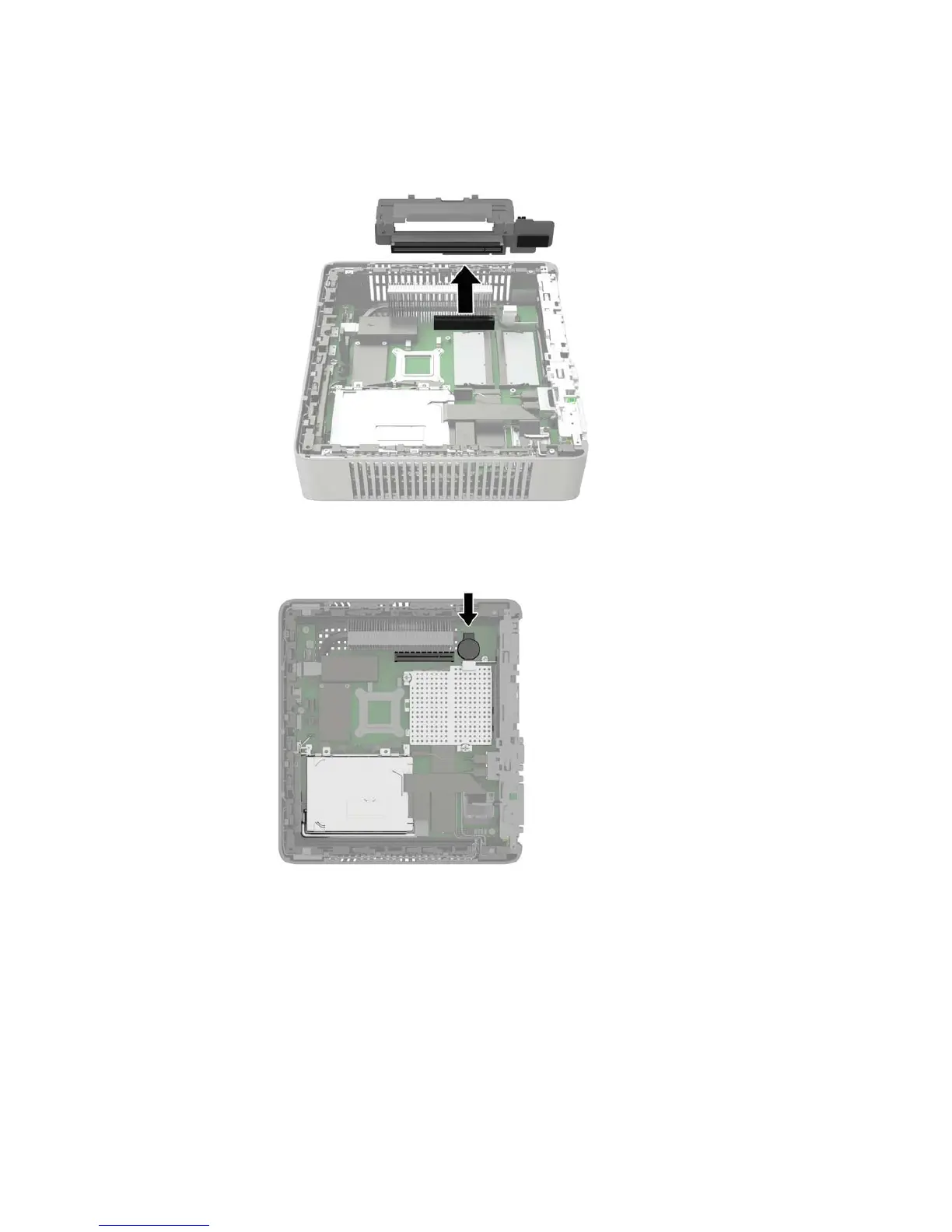

c. Pull the riser card out of the socket and carefully move it to one side.
Disconnecting the cables from the PCIe riser card is not necessary.
8. Locate the battery on the system board.
9. Carefully pry the battery up from the system board.
10. Unplug the battery cable connector from the system board.
11. Connect the cable connector from the new battery to the system board.
12. Carefully press the new battery down to adhere the battery securely to the system board.
13. If the computer is an HP t620 PLUS Thin Client, perform the following steps.
a. If the cables from the PCIe riser card were disconnected in step 7 c, reconnect them.
Removing and replacing the battery
29

HP t620 Specifications

General

L2 cache	1 MB
Processor cores	2
Processor model	GX-217GA
Processor family	AMD G
Motherboard chipset	-
Processor frequency	1.65 GHz
Storage media	SSD
Card reader integrated	No
Total storage capacity	32 GB
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
On-board graphics card model	AMD Radeon HD 8280E
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Operating system installed	Windows Embedded 8 Standard
Operating system architecture	64-bit
Product color	Black
Power supply	65 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Country of origin	China

Weight and Dimensions

Depth	40 mm
Width	220 mm
Height	240 mm
Weight	1360 g
