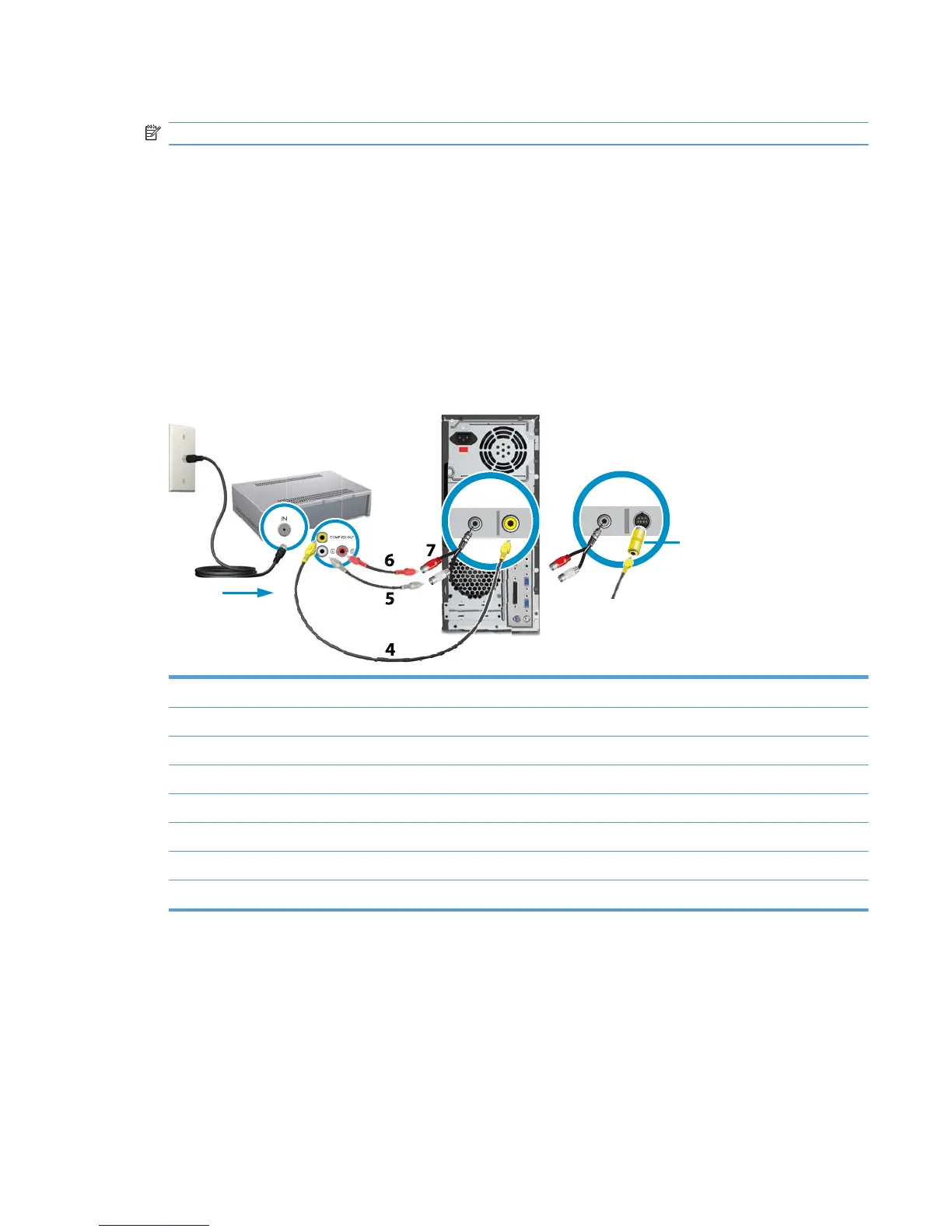

Composite video
NOTE: The location and number of connectors may vary by model.
1. If the computer has a Composite Video In connector, plug a composite video cable (4) into the
Composite Video In connector on the computer. Plug the other end of the composite video cable
into the set-top box.
-or-
If the computer has an S-video In connector, plug the composite video cable (4) into a
composite/S-video adapter (8) to connect to the S-video In connector. Plug the other end of the
composite video cable into the set-top box.
2. Plug the audio cables (5, 6) from the set-top box into the Audio In right (red) connector and
Audio In left (white) connector on the computer. If your computer uses a single audio input, use
a Y cable (7) to combine RCA left and right channels (white and red).
IN
7
1
2
3
4
5
6
8
1 Cable or TV antenna signal
2 Coaxial TV cable
3 Signal
4 Composite cable
5 Audio In left cable (white)
6 Audio In right cable (red)
7 Y audio cable
8 S-video/composite adapter
ENWW Connecting to a set-top box 5
