HP X27c

8
3 Illustrated parts catalog

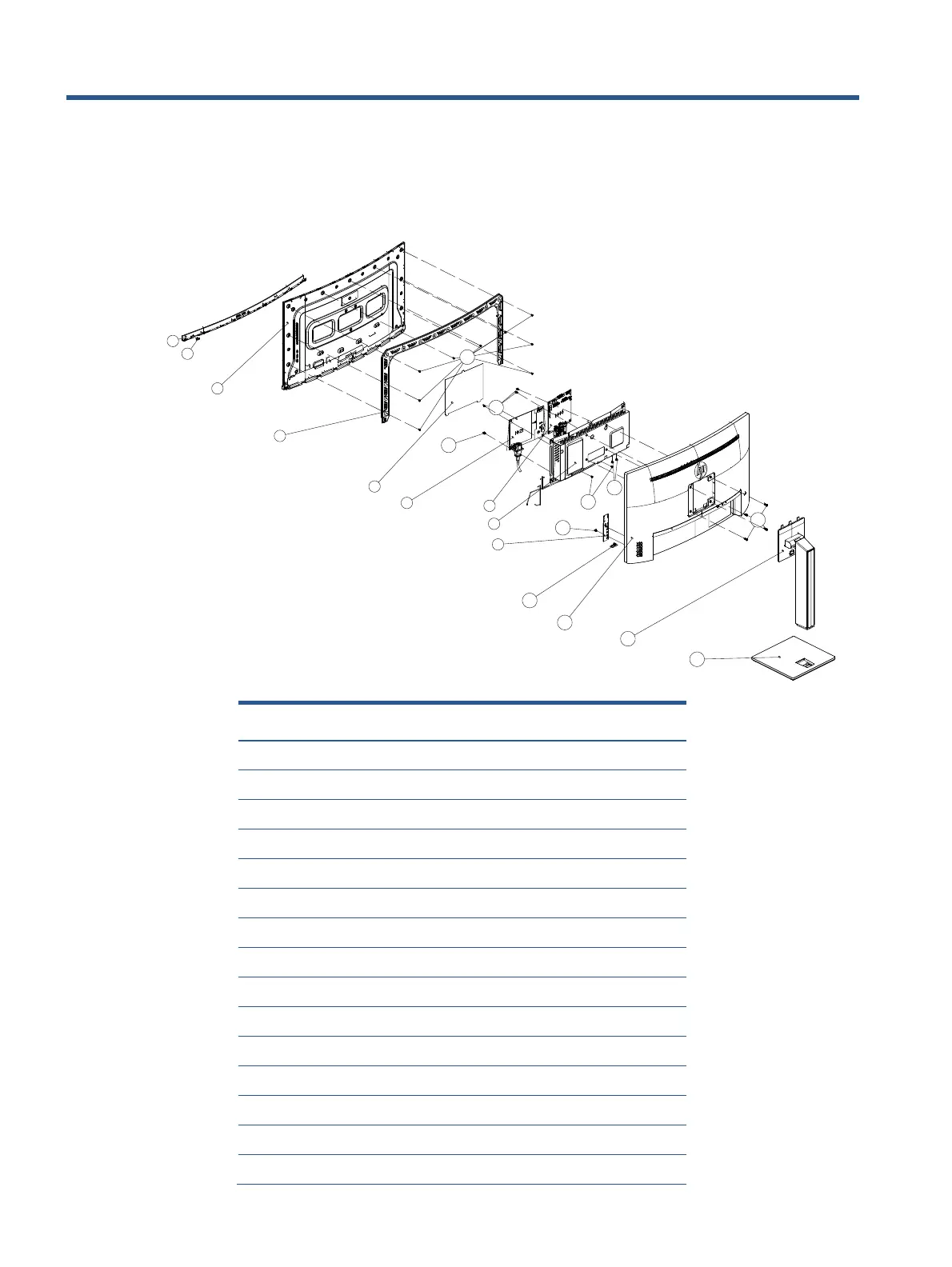

To identify the monitor major components, use this illustration and table.
1
2
3
4
9
10
11
S1
S7
S6
5
6
7
8
12
13
S2
S3
S5
S4
Item
Description
Qty
1
DECO_BEZEL L27WR-Dblc1hp-p12
1
2
LENS_POWER
1
3
PANEL
1
4
MIDDLE_FRAME L27WR-Dblc1hp-p12
1
5
INSULATING SHEET 34.1*17
1
6
POWER BOARD
1
7
MAIN BOARD
1
8
MAINFRAME
1
9
KEY BOARD
1
10
LED BOARD
1
11
REAR_COVER
1
12
stand ass'y NA NA
1
13
BASE_ASS’Y NA NA
1
S1
0M1G3030 4120
9
S2
0D1G1030 6120
4
