2. Slide the pedestal into the slot on the base (1) until the pedestal clicks into the base.
NOTE: The bottom side of the monitor base might look different on your model.
2511x and 2711x models only: Install one screw (2) in the base to secure the pedestal to the
base.

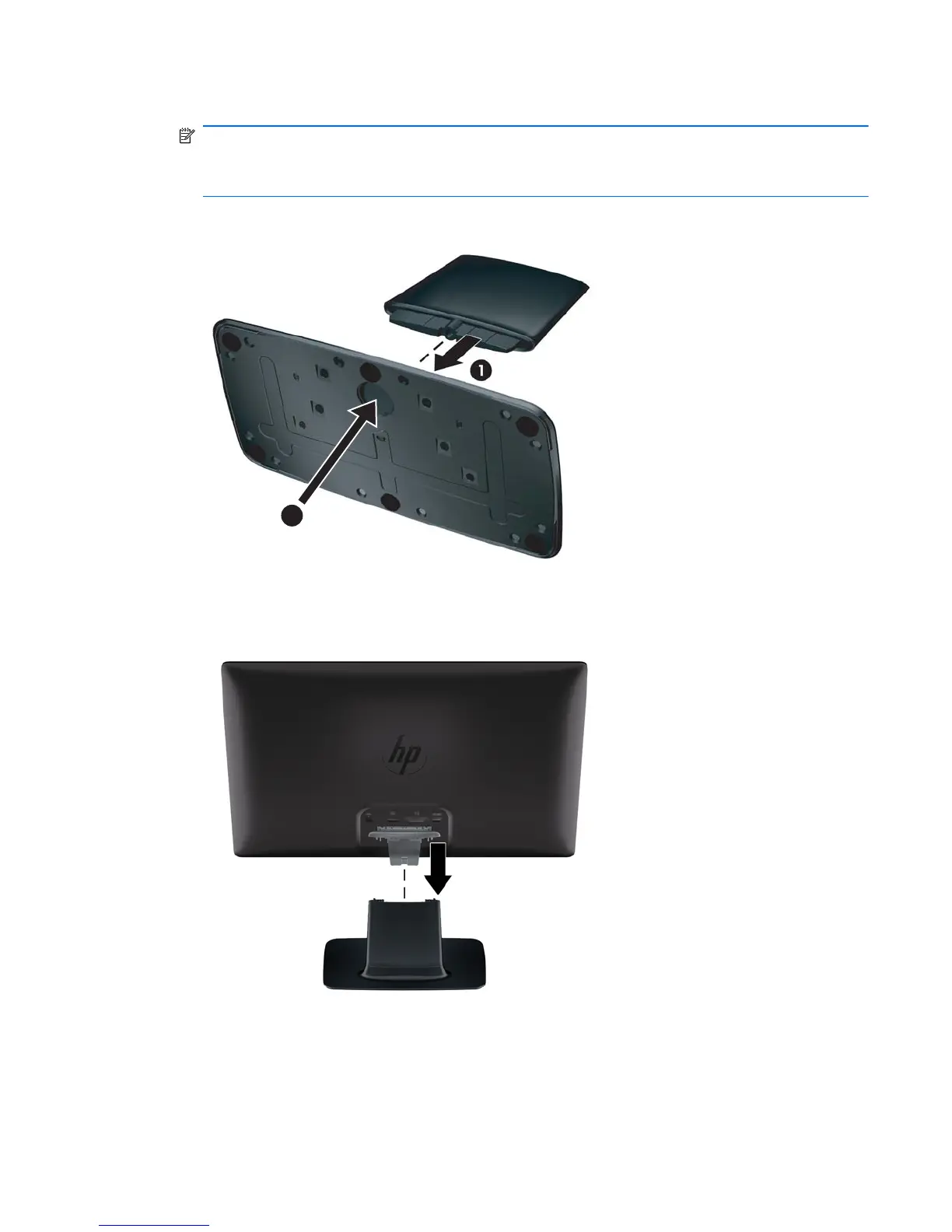

Figure 3-1 Assembling the Base and Pedestal
2
3. Slide the hinge bracket on the monitor into the opening on top of the pedestal. The panel will
click into place when fully inserted.
Figure 3-2 Inserting the Monitor Panel
ENWW Assembling the Monitor 7
