HP Z27

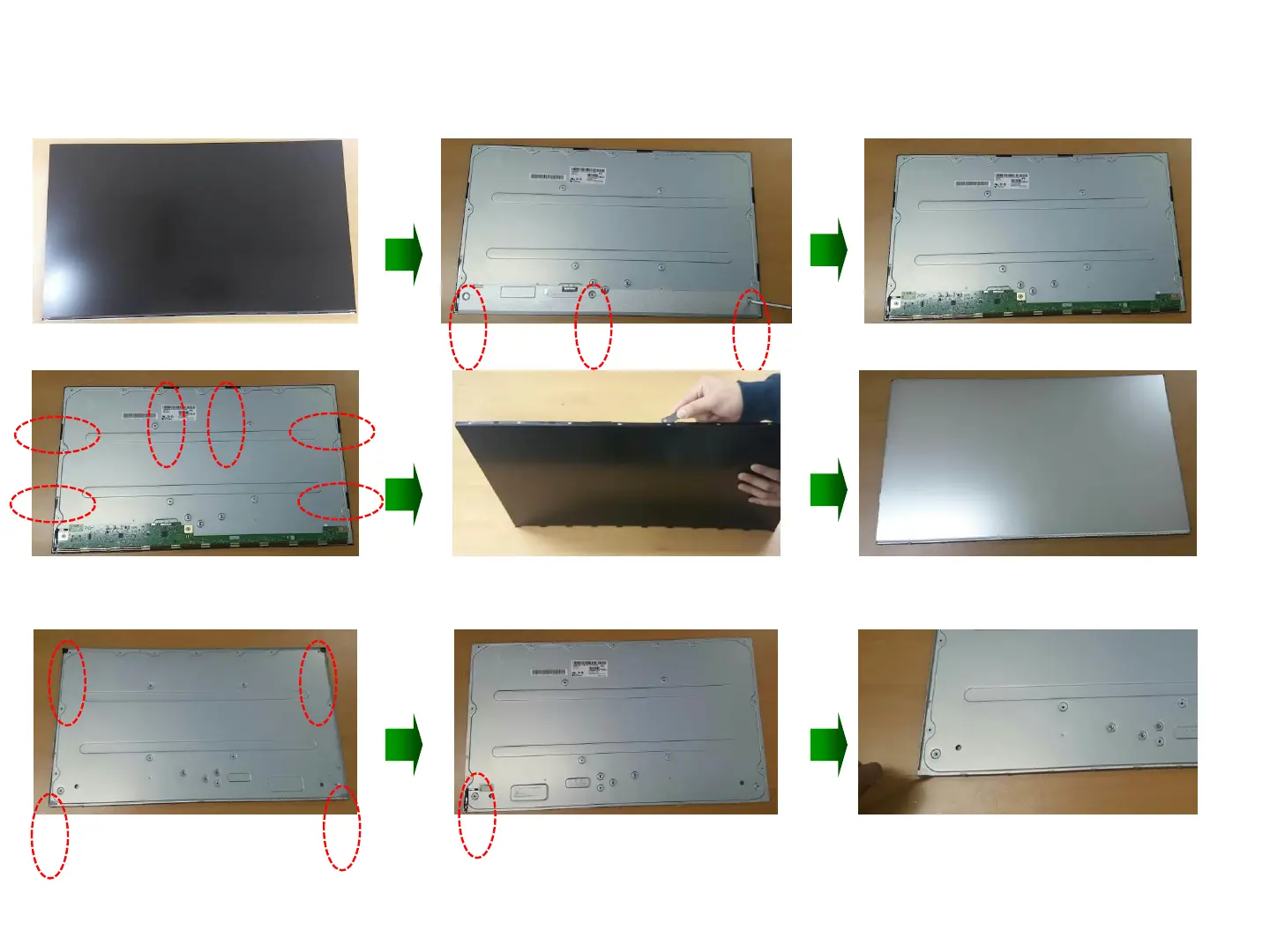

Method of LCM disassembly on LM270WR3-SSA1
Step1 : Loosen the Screw (3 Points)
Bare LCM
Step6 : Separate LGP holder from C/Bottom
(4 Points)
Step8 : Separate LED Array from C/Bottom
Step2 : Remove the C/Shield
Step3 : Detach the Black Tape (6points)
Step7 : Separate C/Board from C/Bottom
Step4 : Separate Board Ass’y + G/Panel
Step5 : Remove Optical material
(Sheet + LGP + Reflector)
