HP ZBook 14u G4

To Next Page

To Previous Page

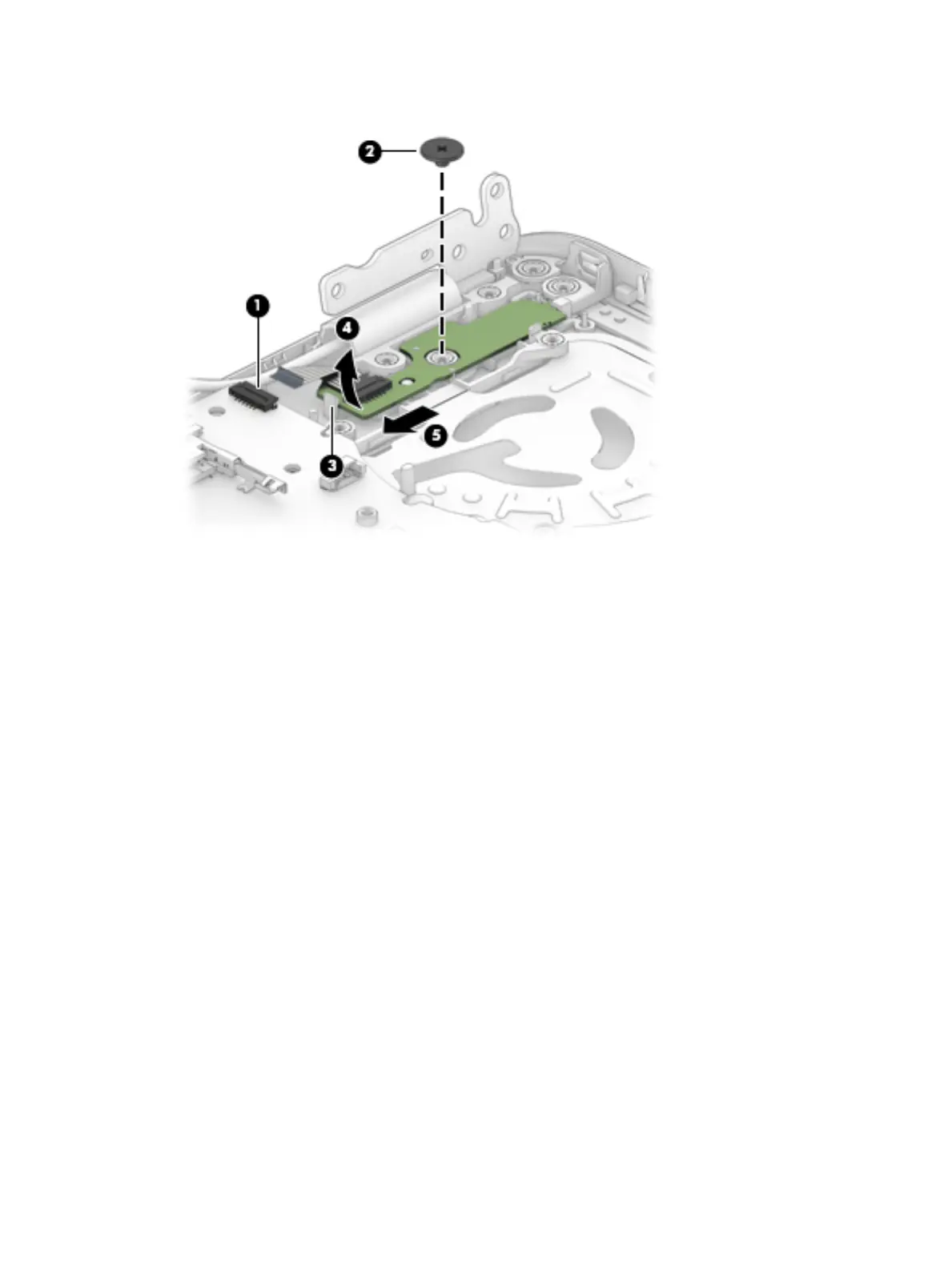

4. Rotate the connector side of board upward (4), and then remove it from the computer (5).

Reverse this procedure to install the power button board.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
