Solid-state drive (2.5 inch)
NOTE: 2.5-inch solid-state drives are only available on models with a 4-cell battery.
Description Spare part number
1 TB, SATA, TLC, 2.5-inch L28686-001
256 GB, SATA, TLC, 2.5-inch L28687-001
Drive bracket, touch and non-touch models L28674-001 (Bracket Kit)
L33681-001 (Hard Drive
Hardware Kit)
Before removing the solid-state drive, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 31).
5. Remove the battery (see Battery on page 33).
Remove the solid-state drive:

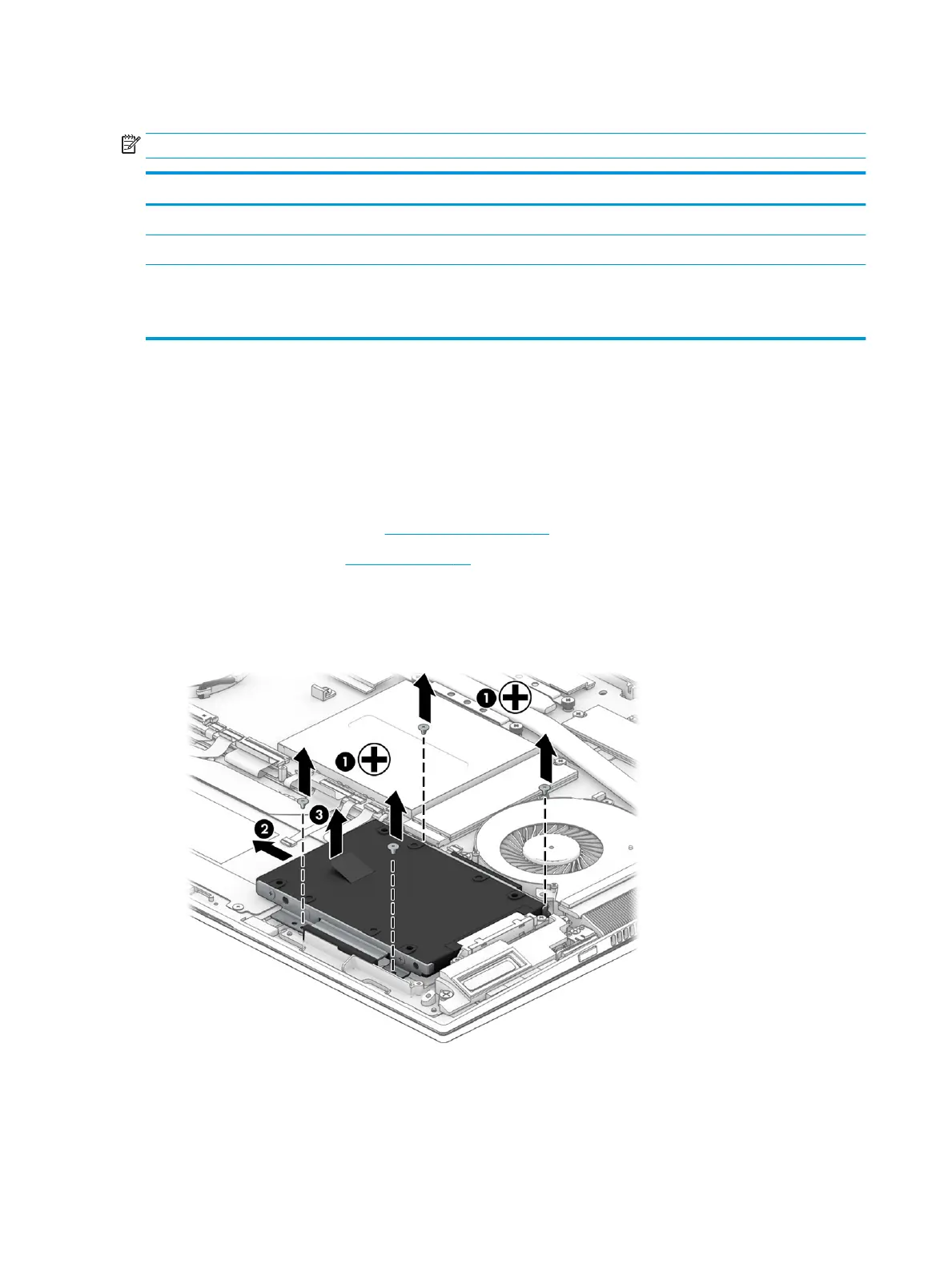

1. Remove the four Phillips M2.0×2.0 screws (1) that secure the drive assembly to the computer.
2. Slide the drive away from the connector (2), and then lift the drive out of the computer (3).
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
