Installing the Power Supply
7. Verify the power supply is installed correctly by checking the LEDs
on the front of the switch. The following example shows an 5406R zl2
switch.

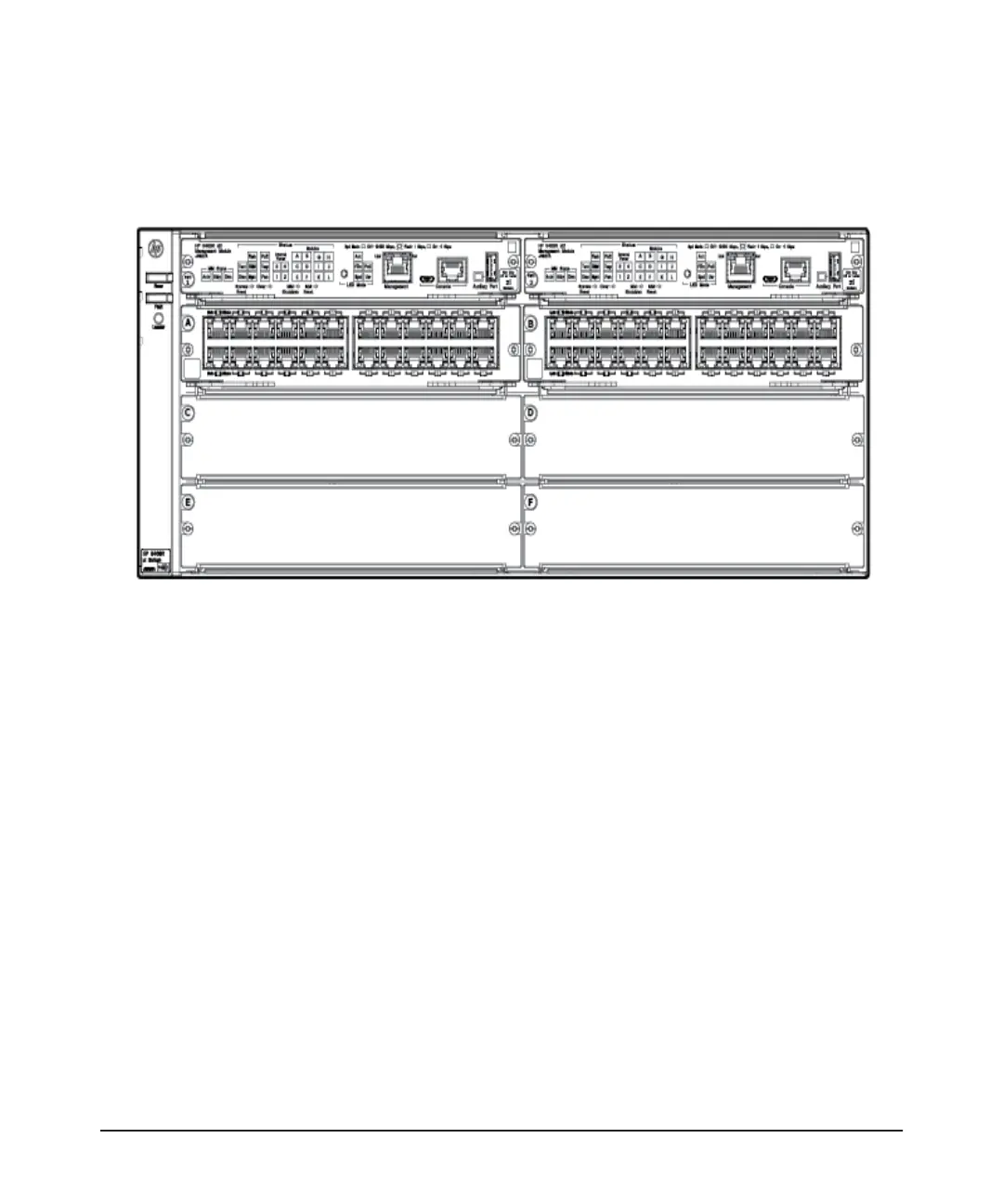

Figure 7. Switch Power Status and Fault LEDs
The status LED for the power supply, on the management module bulkhead,
you have just installed will be flashing simultaneously with the Fault LED until
that new power supply is connected to an AC power source. Once it is
connected to AC power, the Power Status LED will be on continuously and
not flashing, and the Fault LED will stop flashing.
If the Power Status LED and the switch Fault LED continue flashing after the
power supply is connected to AC power, see “Troubleshooting” on the next
page.
