HP ZR22W User Manual

3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
NOTE: Be sure the master power switch, located on the rear panel of the monitor, is in the off position.
The master power switch turns off all power to the monitor.
Installing the Monitor Pedestal Base
NOTE: Do not install the pedestal base if the monitor will be used on a wall, swing arm, or other
mounting fixture; instead see
Mounting the Monitor on page 13 in this chapter.
1. Using both hands, position the monitor over the pedestal base.
CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-
uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover
to its normal condition.
2. Press down firmly on the monitor to lock the pedestal base in place. When the base locks, it will
make a clicking sound.

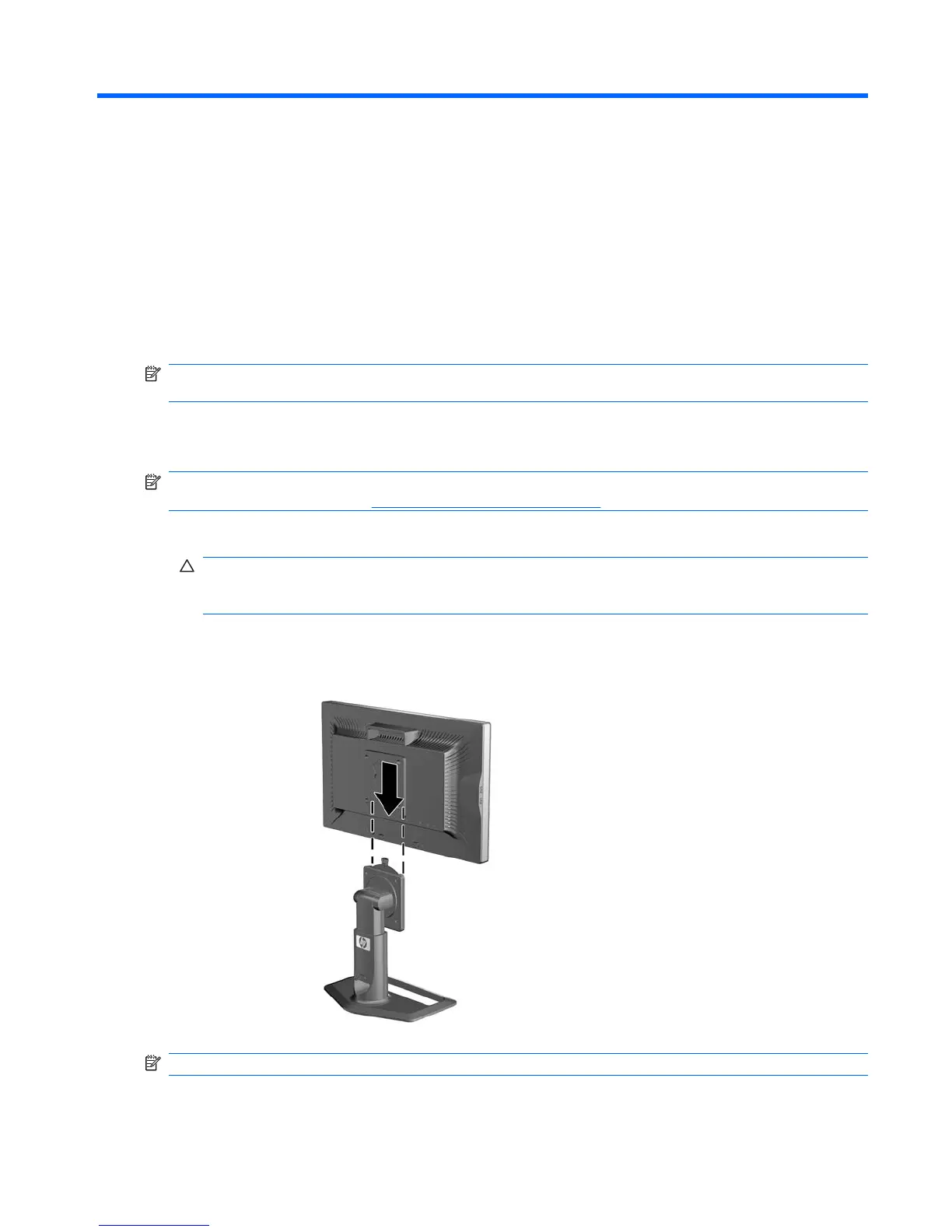

Figure 3-1 Inserting the Monitor into the Pedestal Base
NOTE: Be sure the pedestal base is securely locked before continuing with the setup.
ENWW Installing the Monitor Pedestal Base 5

HP ZR22W Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Response time	8 ms
Display diagonal	21.5 \
Separate H/V sync	Yes
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	24 - 94 kHz
Display brightness (typical)	210 cd/m²
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
USB hub version	2.0
DVI-I ports quantity	0
USB Type-A downstream ports quantity	4
Certification	EPEAT Gold, RoHS
Product color	Black
Country of origin	China
Market positioning	Business
LED indicators	Power
Tilt angle range	-5 - 30 °
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
AC input voltage	100 - 240 V
Power consumption (standby)	1 W
Power consumption (typical)	44 W
Power requirements	100 - 240V, 50/60Hz
Sync input impedance	75 Ω
Dimensions (W x D x H) (imperial)	20 x 2.5 x 11.9 \
Product dimensions (with stand, imperial)	20 x 9.1 x 14.4 \
Operating altitude	0 - 5000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	394 mm
Package width	571 mm
Package height	316 mm
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	230 mm
Height (with stand)	367 mm
Depth (without stand)	64 mm
Width (without stand)	507 mm
Height (without stand)	303 mm
Weight (without stand)	9660 g
