Rear Components
HP ZR22w and ZR24w Models

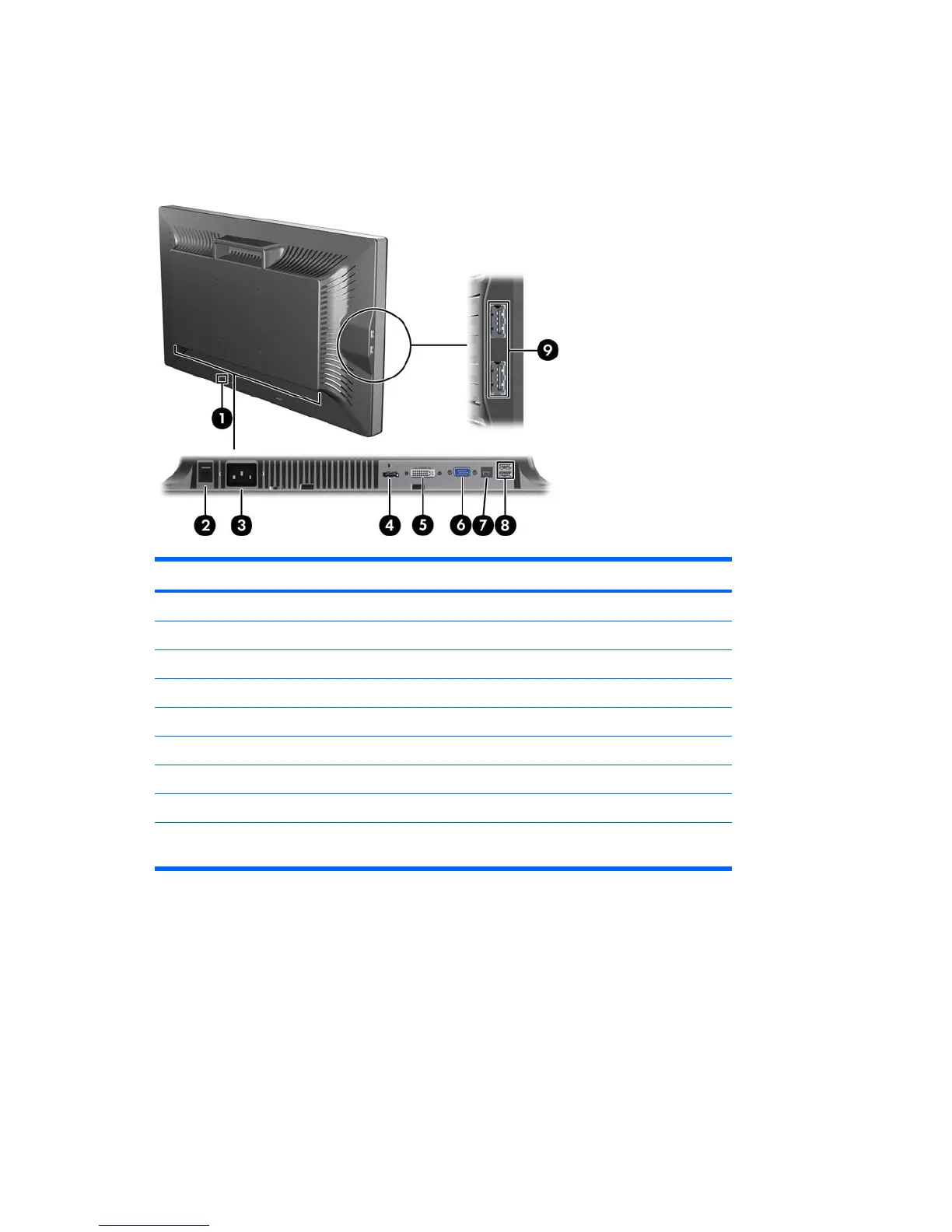

Figure 3-2 Rear Components
Table 3-1 Rear Components
Component Function
1 Cable Lock Provision Provides slot for use with cable security locks.
2 Master Power Switch Turns off all power to the monitor.
3 AC Power Connector Connects the AC power cord to the monitor.
4 DisplayPort Connector Connects the DisplayPort cable to the monitor.
5 DVI-D Connector Connects the DVI-D cable to the monitor.
6 VGA Connector Connects the VGA cable to the monitor.
7 USB Upstream Connector Connects the monitor USB hub cable to a host USB port/hub.
8 USB Downstream Connectors Connects optional USB devices to the monitor.
9 USB Downstream Connectors
(side panel)
Connects optional USB devices to the monitor.
6 Chapter 3 Setting Up the Monitor ENWW
