3. Mount the Quick Release to a swing arm or other mounting fixture using the four screws removed
from the Quick Release in the previous step.

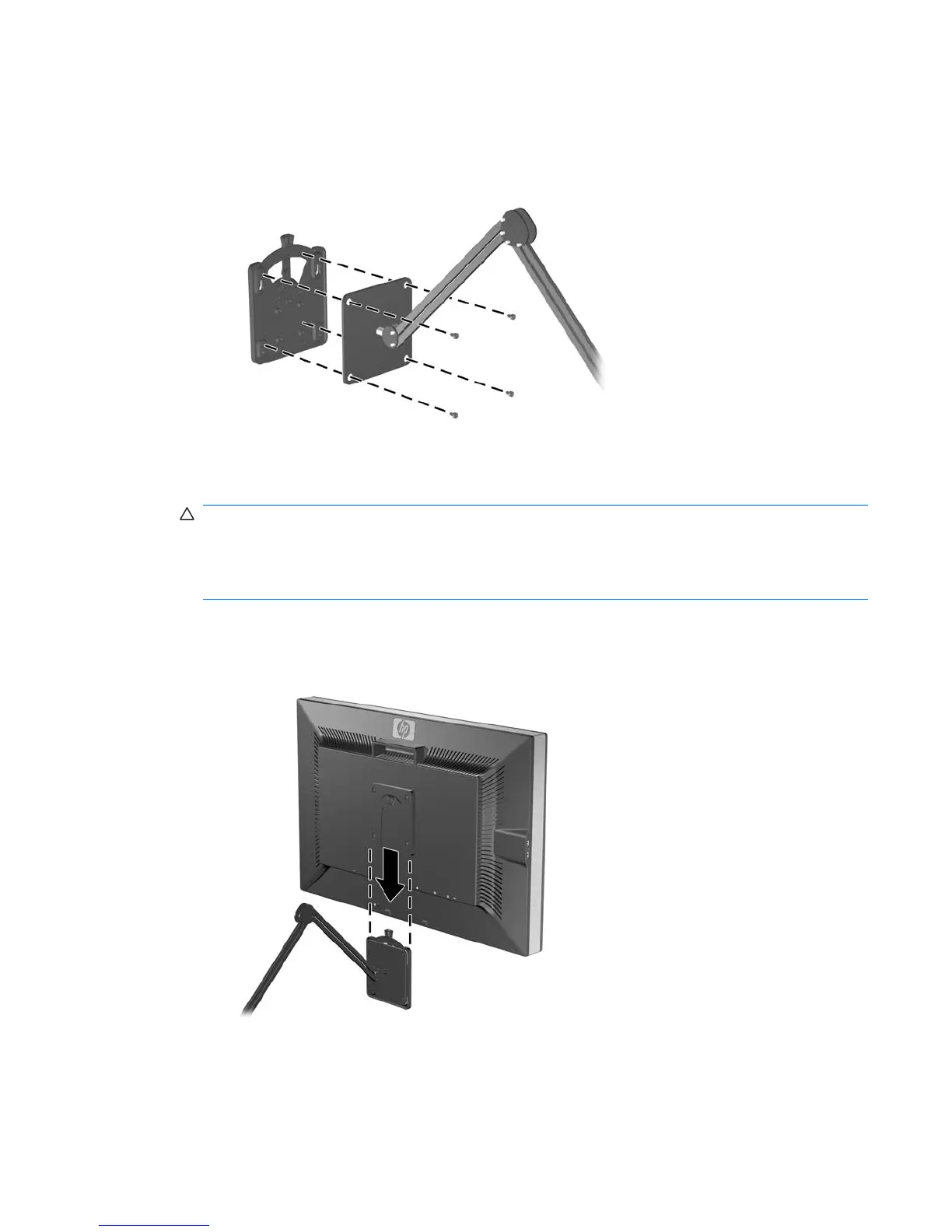

Figure 3-12 Installing the Quick Release
CAUTION: The Quick Release can also be installed directly to a wall to mount the monitor panel.
It is designed to support a maximum of up to 10.9 kg (24 lbs). If you are mounting to a wall, HP
recommends that you consult with a qualified engineering, architectural, or construction
professional to determine the appropriate type and quantity of mounting fasteners required for your
application and to ensure that the mounting solution is properly installed to support applied loads.
4. Insert the monitor panel into the Quick Release, and then press down firmly on the monitor to lock
it in place. When the Quick Release locks, it will make a clicking sound.
Figure 3-13 Inserting the Monitor Panel into the Quick Release
ENWW Removing the Monitor Pedestal Base 13
