Mode 3: Use Terminals to Control Start/Stop and
Communication Setting Running Frequency
Ref. Code Function Setting Value Description
F00.10
Frequency setting
channel
2
SCI communication
setting
F00.11
Command setting
channel
1 Terminal setting
F03.01/
F03.02
Acc./Dec. time 1 -
Adjust according to actual
needs
F15.00 DI1 terminal function 2 (factory default) Forward
F15.01 DI2 terminal function 3 (factory default) Reverse
F15.18 DO1 terminal function 2 (factory default) Inverter running
F17.00 Data format 0 (factory default)
1-8-2 format, no parity,
RTU
F17.01 Baud rate 3 (factory default) 9600bps
F17.02 Local address 2 (factory default)
3. When K1 turns on, the motor runs forward, and when K1 turns o, the
motor stops running.
When K2 turns on, the motor runs in reverse, and when K2 turns o, the
motor stops running.
When K1 and K2 turn on/o at the same time, the motor will stop running.
4. SCI communication modify the operating frequency (function code 0x06
write register 0x3201).

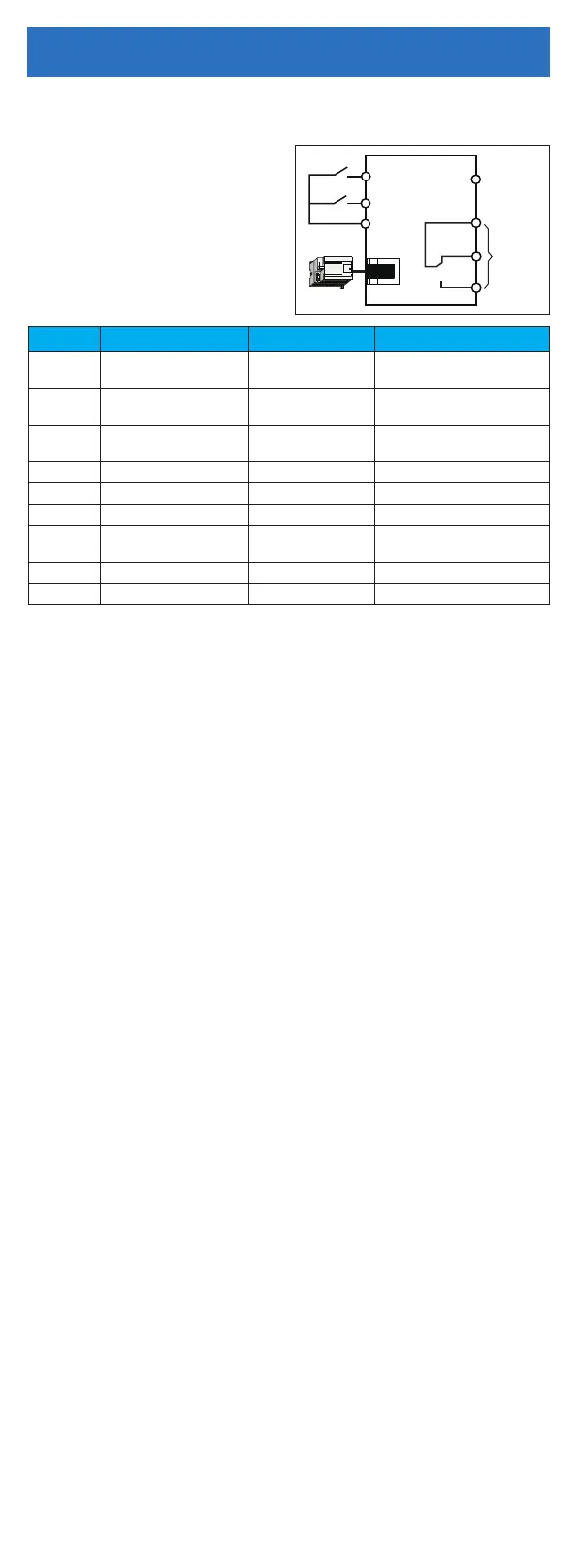

1. DI1 is a forward signal and DI2 is
a reverse signal. See the right
figure for wiring.
2. Use keypad to set the motor
parameters and the parameters
see the table below.
DI1
COM
RJ45
DI2
K1
K2
DO1
R1C
R1B
R1A
Running
output
Fault
output
Note: For details of the Modbus communication protocol, please refer to the user
manual of each product.
