HRESYS TL Series User Manual

TL-LFP Series LiFePO
4
Battery Operation Manual

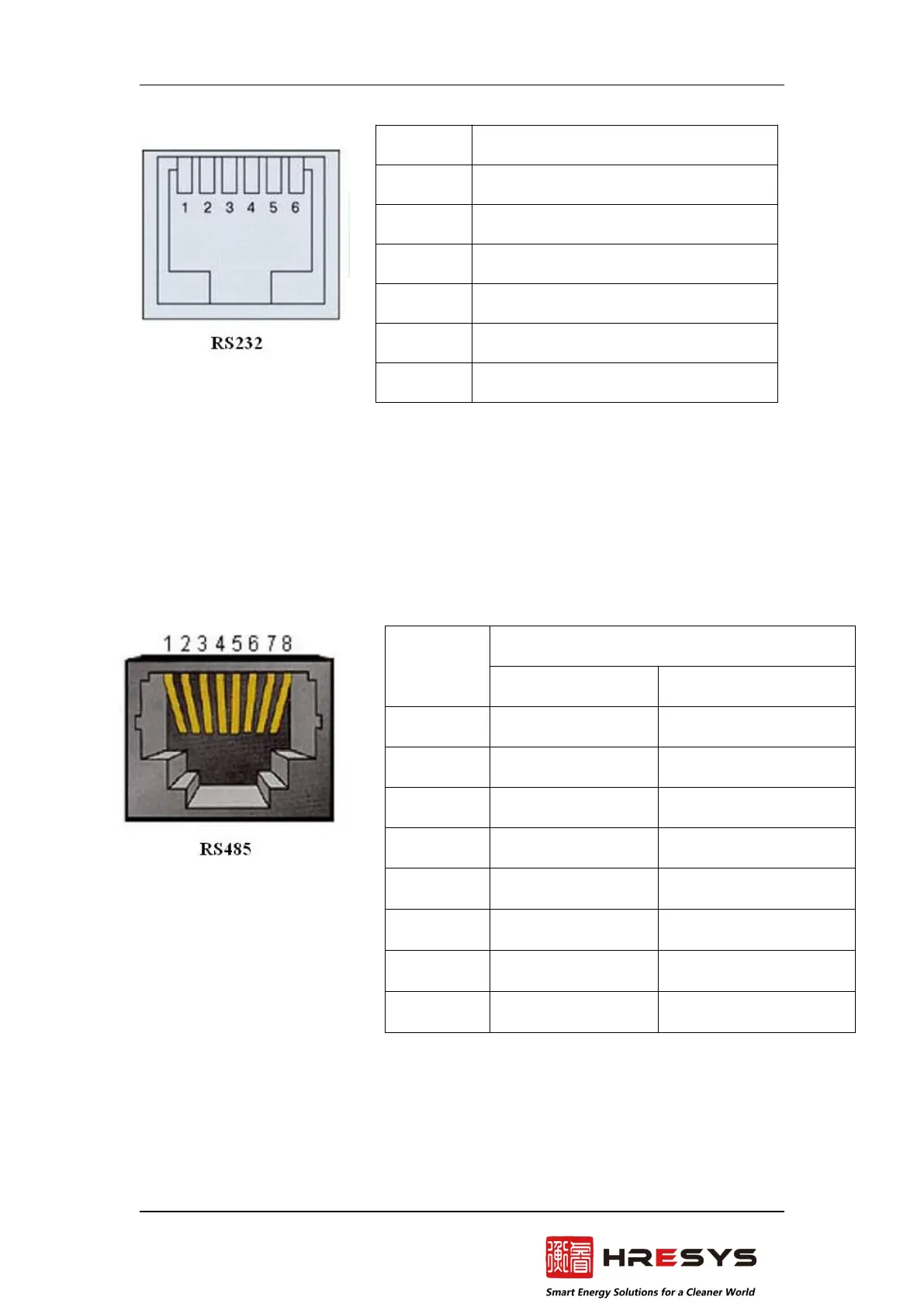

2) RS-485
The system uses/through 8Pin straight PCB welding socket(RJ45) to provide RS-485 protocol, the pin
assignment of RJ45 is defined as follows。
Table 2 RJ45 Interface definition
RJ11 Pin
Definition Description
1
GND
2
SWCLK
3
Pack transmit; Computer receiver
4
BMS receiver; Computer transmit
5
RS232_GND
6
SWDIO
RJ45 Pin
Definition description
TL4850/48100
TL48150
1
RS485_B
RS485_B
2
RS485_A
RS485_A
3
RS485_B
GND
4
CAN_L
CAN_L
5
485_B
485_B
6
485_A
485_A
7
GND
GND
8
CAN_H
CAN_H
