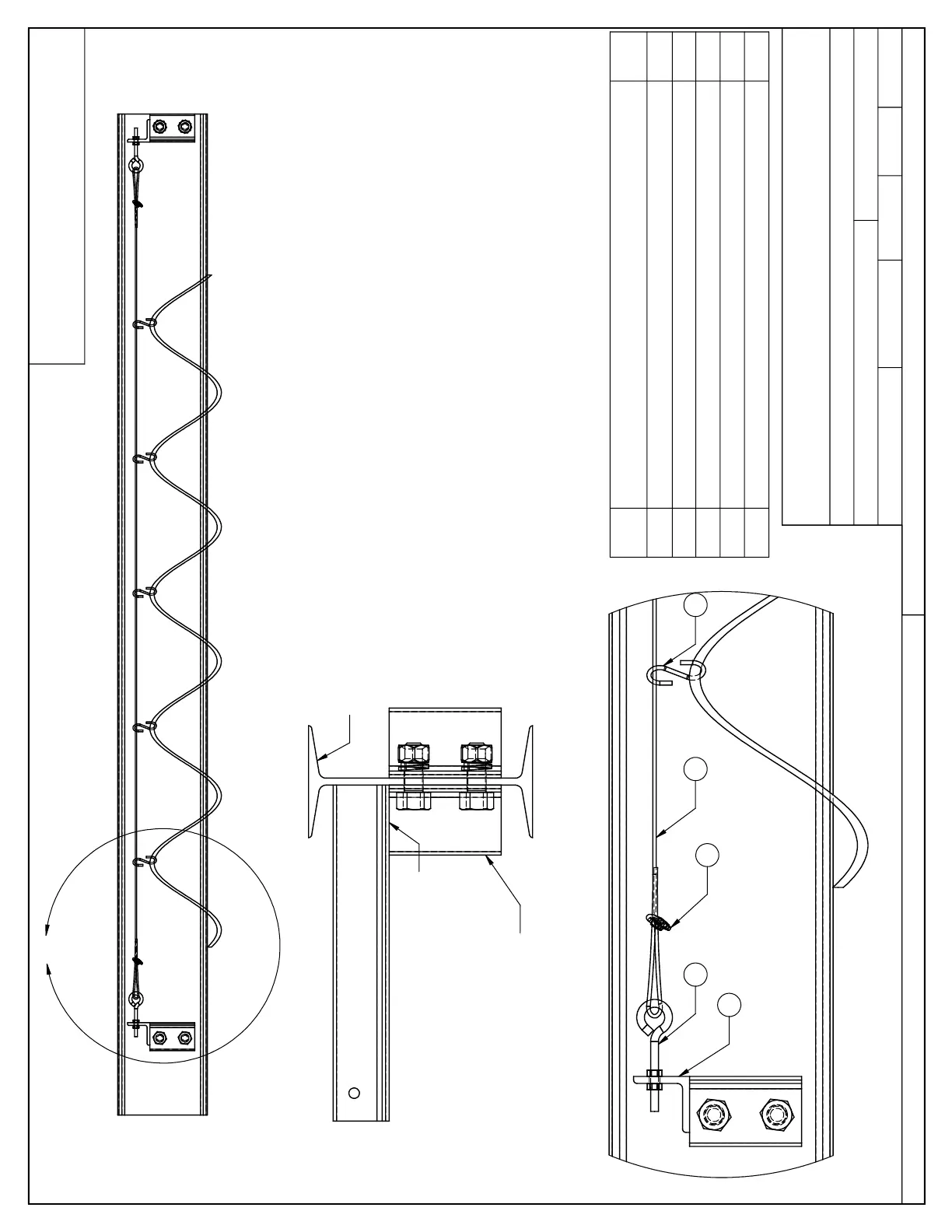

A
DETAIL A
SCALE 1 : 4
4
3
2 5
1
BOOM
END STOP
BRACKET
WELD
MAKE SURE TIGHT WIRE BRACKETS (WHICH ARE1.
WELDED TO END STOPS) ARE ON THE SAME SIDE OF
BOOM.
LOOP CABLE THROUGH EYE BOLT AT ONE END.2.
TIGHTEN WITH CABLE CLAMP. PUT "S" HOOKS ON
CABLE. LOOP CABLE THROUGH OTHER EYE BOLT.
TIGHTEN WITH CABLE CLAMP.
SLIP EYE BOLT THROUGH TIGHT WIRE BRACKET AND3.
TIGHTEN EYE BOLT UNTIL TIGHT WIRE IS TIGHT.
**NOTE: 361 MODEL JIB ONLY REAR TIGHT WIRE4.
BRACKET IS BOLTED TO REAR GUSSET ON BOOM.
**NOTE: FOR CRANES WITH 6" BEAM TIGHT WIRE5.
BRACKET MAY HAVE DIFFERENT ORIENTATION DUE
TO SPACE CONSTRAINTS.
ITEM
NO.
DESCRIPTION QTY.
1 TIGHT WIRE ANGLES (WELDED TO ES) 2
2 1/8" DIA CABLE (LENGTH = CRANE SPAN) 1
3 CABLE CLAMPS 2
4 5/16" EYE BOLTS W/ NUTS 2
5 "S" HOOKS #
DATE
DRAWN
D. Grujic
1:10
DRAWING
SIZE
DRAWN
BY
DESCRIPTION
HANDLING SYSTEMS INTERNATIONAL
LAGRANGE, IL 60525
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HANDLING SYSTEMS INTERNATIONAL,
INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HANDLING SYSTEMS INTERNATIONAL, INC. IS PROHIBITED.
TOLERANCES:
DECIMALS (UNLESS OTHERWISE SPECIFIED) TWO PLACE (.00) + / .015 THREE (.000) +/ .005
ANGLES +/ 30 MINUTES ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED.
SCALE:
TIGHT WIRE ASSEMBLY
SHEET
NUMBER
05/02/07
A
1
MATERIAL
PART NUMBER
9990000
9990000
11
