HSD ES919 User Manual

HSD
5801H0056 ______________________________________________________________ 168/181

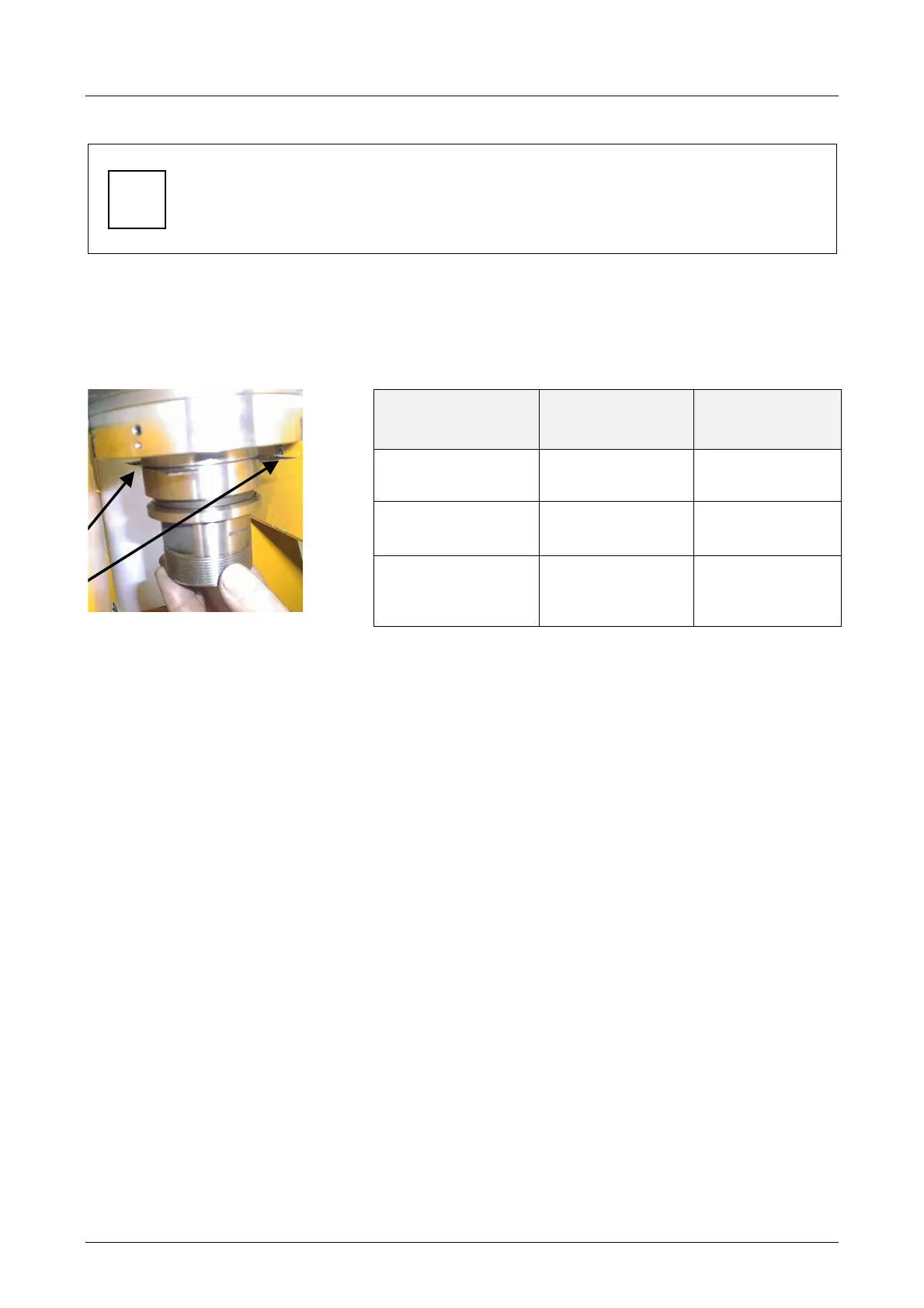

8.8.17 Adjusting sensor S4 (HSK versions only)
i
Only for HSK versions: for the adjustment of HSK F63 sensors, a kit of gauges
and thickness spacers is available, described in section 8.8.18.
The use of the kit allows a quicker and more precise adjustment: HSD S.p.A.
strongly recommends the use of the kit, given the importance (for safety purposes)
of a correct sensor adjustment.
After replacing the sensor as described in paragraph 8.8.12, calibrate it as follows:
1. take thickness spacers of 0.12mm and 0.16mm, which will be interposed between the stop
surfaces of the tool-holder cone and the spindle shaft, as shown in the figure below;
2. insert and block the tool-holder cone in the spindle, and check that the signal supplied by
sensor S4 corresponds to that described in the following table:
CONDITION
THICKNESS
SPACER
INTERPOSED
S4 OUTPUT
Tool-holder
blocked
0.12mm
ON
Tool-holder
blocked
0.16mm
OFF
Tool-holder
expelled
(collet open)
OFF
Figure8 16.
3. rotate the shaft manually and check that the conditions of the table are satisfied for all 360° of
the rotation;
4. if this is not the case, rotate the sensor until you find the position at which you obtain the
output described in the table;
5. definitively tighten the screw (3);
6. perform a cycle of 10 tool changes;
7. at the end of the cycle, check that the condition in point [2] of the table is satisfied for all 360°
of the rotation of the shaft; if this is not the case, repeat the procedure from the start;
8. if the conditions of the table are satisfied, perform a cycle of 100 tool changes with the
machine, using the maximum possible number of different tool-holders;
9. at the end of the cycle, check that the condition in point [2] of the table is satisfied for all 360°
of the rotation of the shaft; if this is not the case, repeat the procedure from the start;
10. if the condition in point [2] of the table is satisfied, the adjustment of S4 is complete.
