7.1 SCHEDULED MAINTENANCE
The punctual respect of the scheduled maintenance is essential in order to maintain the
conditions of use and working planned by HSD S.p.A. when the product was put onto the
market.
The frequency has been calculated on the basis of a working week of 5 days, each of 8
working hours, under normal ambient working conditions.
7.1.1 Checking the cleaning of the tool-holder cone and the conical housing
in the spindle shaft
Frequency: DAILY

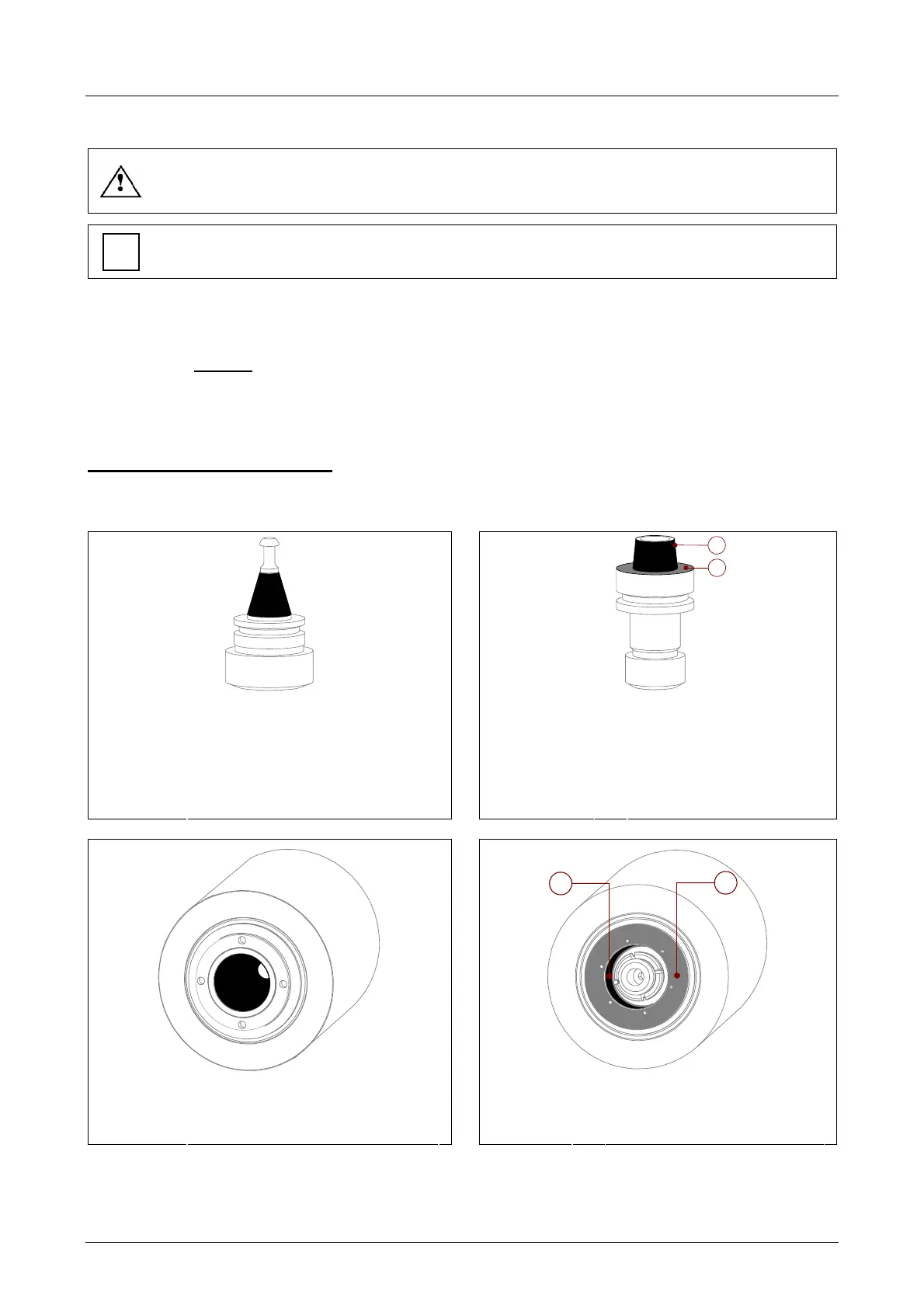

Before using the electrospindle, ensure that the conical surfaces of the tool-holders (highlighted in
black in Figure7 1. and Figure7 2.) and the conical surface of the tool-holder housing in the
spindle shaft (highlighted in black in Figure7 3. and Figure7 4.) are thoroughly clean, with no
traces of dust, grease, cooling liquid, oil or metallic particles, nor traces of oxide or scale;
ONLY FOR THE HSK MODEL:
make the same check also on the stop surfaces of both the tool-
holder and the spindle (surfaces highlighted in grey and indicated by no.2 in Figure7 2.) and
Figure7 4.).
ISO
2
1
HSK
HSK tool-holder:
(1) Conical surface
(highlighted in black)
Figure7 1. Conical surface of the ISO tool-holder
(highlighted in black)
Figure7 2.
(2) Stop surface (highlighted in
grey)
1
2
HSK tool-holder housing
(1)
Conical surface (in black)
Figure7 3.
Conical surface of the ISO spindle
shaft (highlighted in black)
Figure7 4.
(2)
Stop surface (in grey)
Daily cleaning is recommended, at the end of the working day, using a clean, soft cloth.
