2 TECHNICAL SPECIFICATIONS

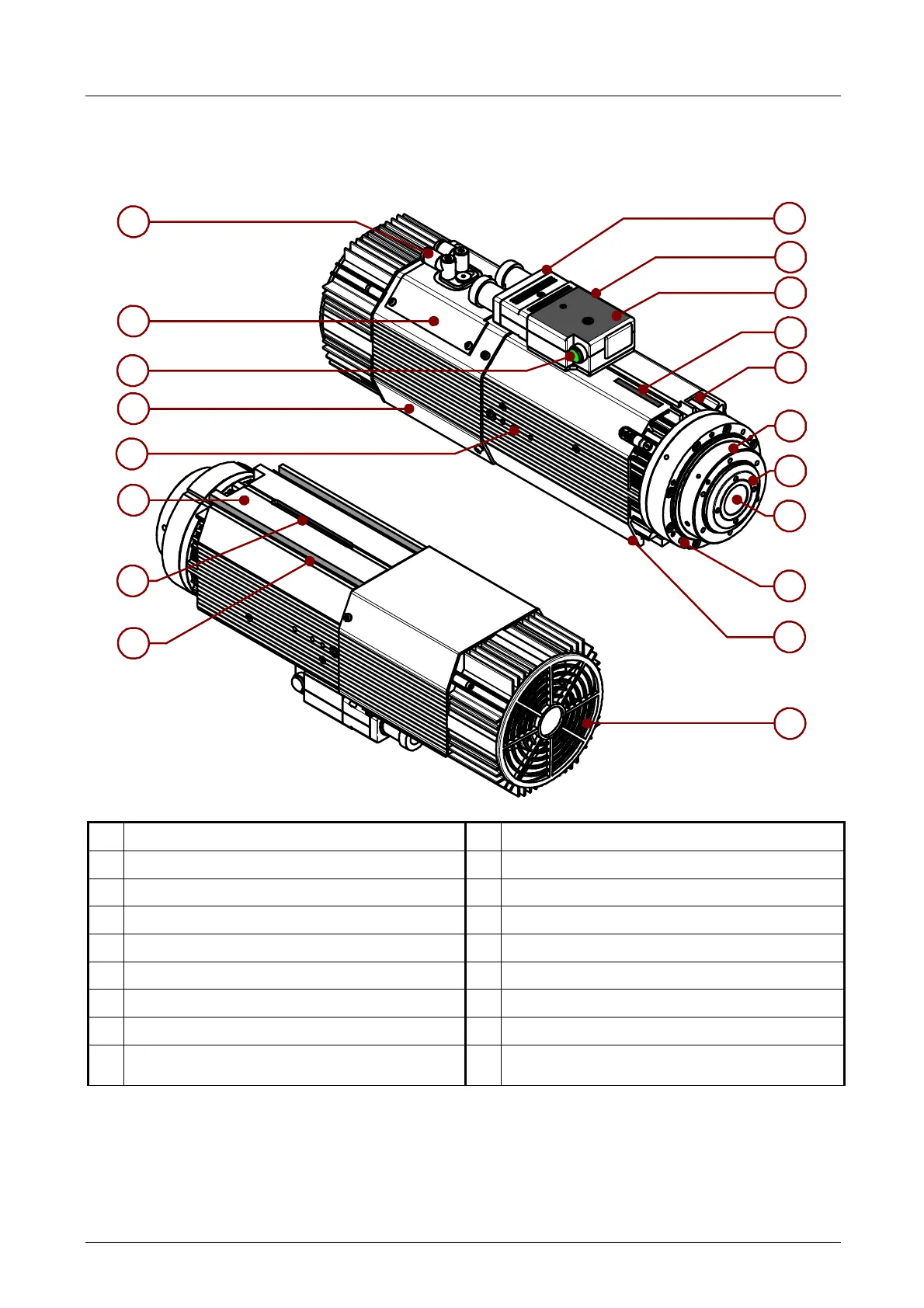

2.1 MAIN PARTS OF ES915/ES919/ES929/ES988
12
1
8
4
6
7
9
10
9
15
14
13
17
18
3
2
5
16
11
1 Movable electrical connectors 10 Framework
2 Fixed electrical connectors 11 Electric fan (air-cooled versions only)
3 EC marking plate 12 Pneumatic connectors
4 Serial number 13 Cover of the sensor area
5 Connector for sensor on accessories (e.g. C-axis) 14 Button for the manual release of the tool-holder
6 “Nose” 15 Pneumatic cylinder
7 Shaft 16 Resting surface
8 Tool hooking system 17 Seat for centring tang
9
Threaded bores for accessories
(on the sides and the front flange)
18 “T” slot for fixing
