QUICKLAN 6055
EN - 4
4. NOMENCLATURE

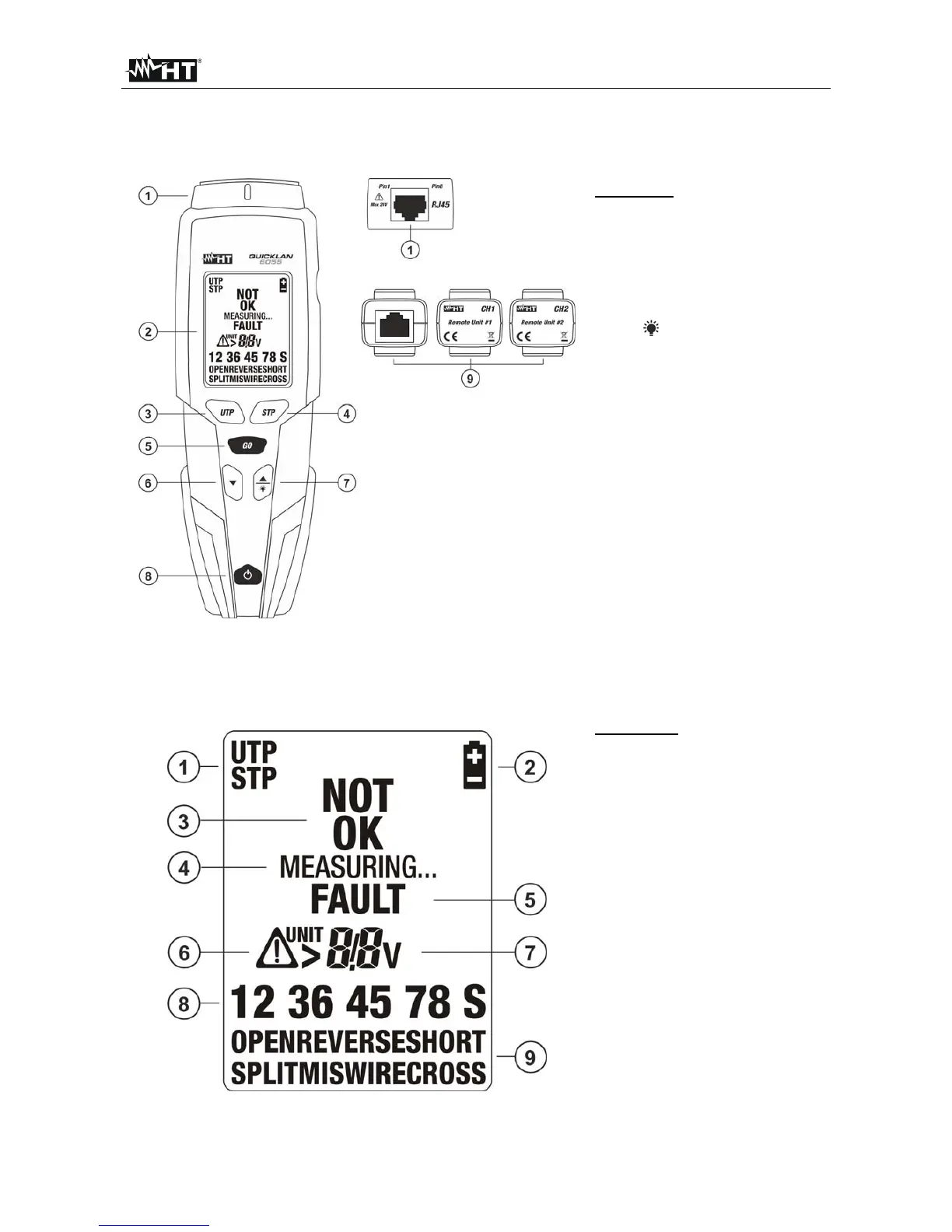

4.1. INSTRUMENT DESCRIPTION
CAPTION:
1. RJ45 input terminal
2. LCD display
3. UTP key
4. STP key
5. GO key
6. key
7. / key
8. ON/OFF key
9. Remote
units #1 ~ #2
Fig. 1: Instrument description
4.2. DISPLAY DESCRIPTION
CAPTION:
1. Type of selected cable
2. Low battery indication
3. Final test outcome
4. Running test indication
5. Fault test indication
6. Caution and remote unit
number indications
7. Error numbers and input
voltage indications
8. RJ45 cable couples and
S shield indications
9. Error type indications
Fig. 2: Display description
