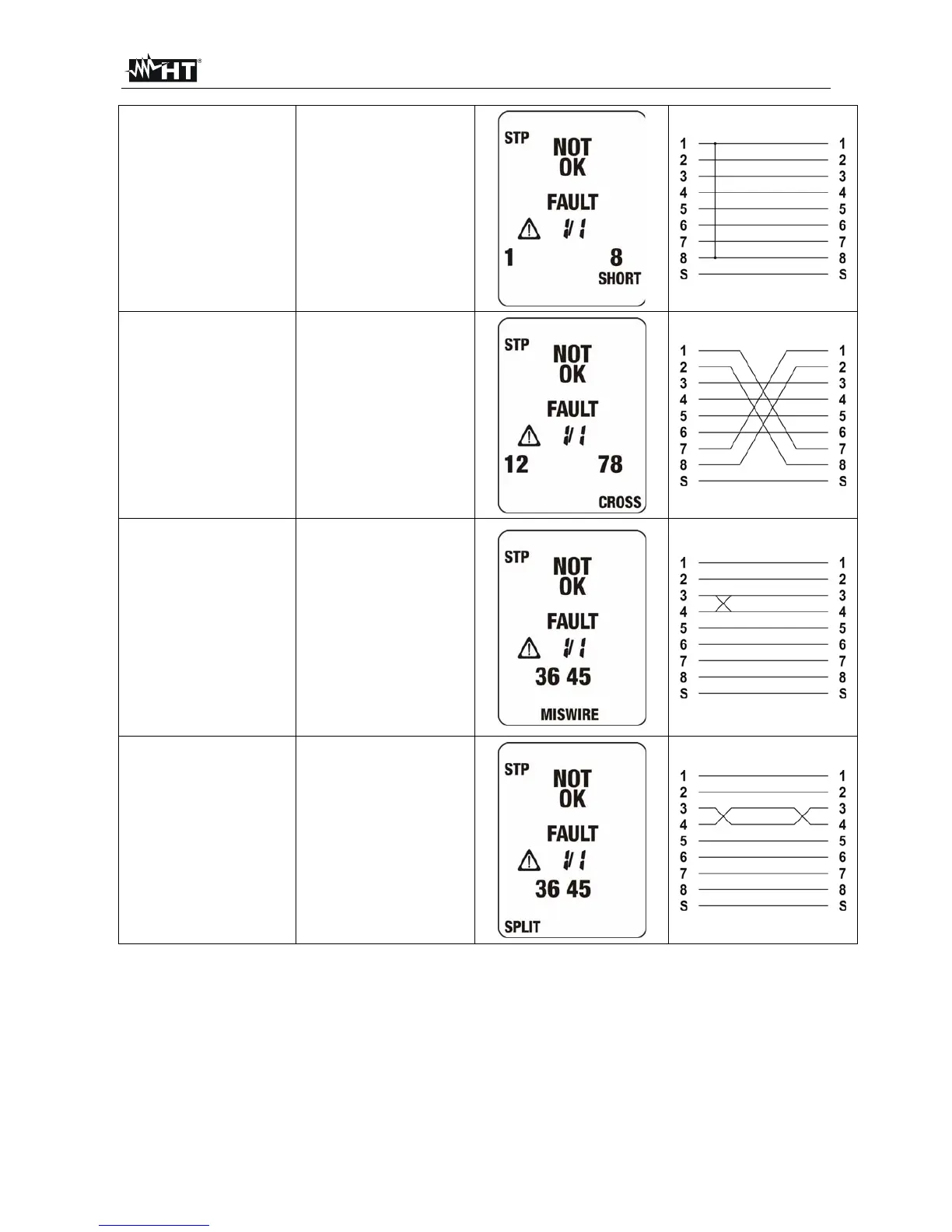

SHORTED CABLES
Two conductors are
in short circuit
between each other
TRANSPOSED
(CROSSED) PAIRS
Two pairs are
crossed
MISWIRE
Generic cabling
error, such as for
example two
conductors belonging
to different pairs are
exchanged
SPLIT PAIRS
The pin to pin
correspondence is
hold, but physically
the conductors of two
pairs are crossed
