HT7051 - HT7051N
EN - 20

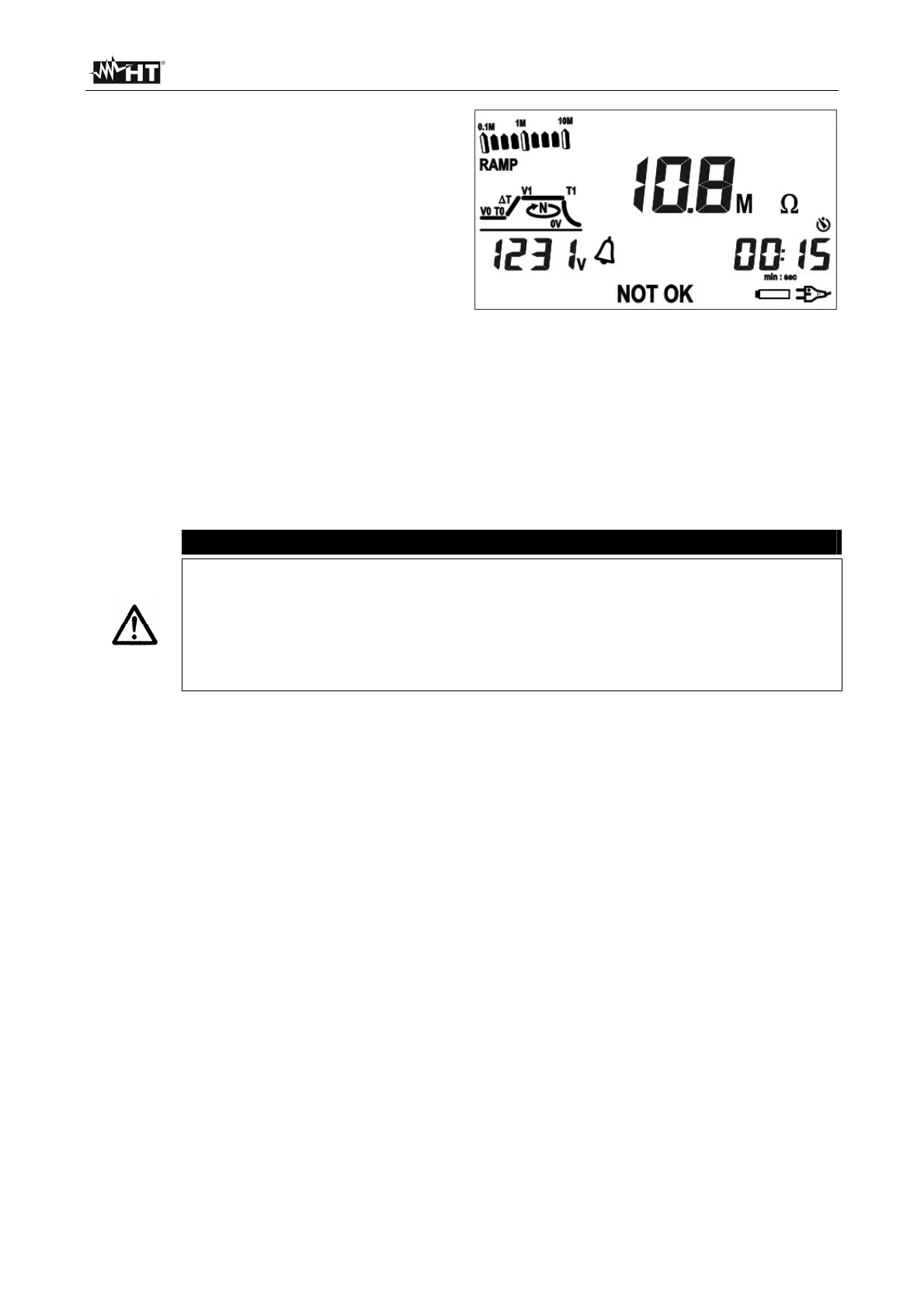

10b. Once measurement is complete and
any capacitance has been discharged,
the instrument shows:
The value of the measured
insulation resistance
The value of the actually generated
voltage V1
The value of the time relevant to
parameter T1
If the measured resistance value is
not between the (MIN - MAX) limits
previously set, the instrument shows
NOT OK, the alarm bell and gives a
long acoustic signal (see § (§ 5.4.1,
§ 5.4.2, § 5.4.3)
11. Once measurement is complete, it is also possible to display the leakage current, the
capacitance the number N of cycles in which the set ramp was repeated, which
cyclically show when pressing the arrow keys
CAUTION
If the measured resistance value < 5,0M, the screen displaying the
capacitance shows three hyphens “---“, to indicate that it was impossible to
measure the capacitance, and the CAUTION triangle
If, when scrolling the results obtained, the capacitance value is > 1nF, it is
recommended to repeat the measurement by activating the SMOOTH
function (see § 5.5)
12. Measures can be saved by pressing the SAVE key twice (see § 6.1)
